Fire-Fighting Hest Fume Extration Axial-Flow Blower

Fire-Fighting Hest Fume Extration Axial-Flow Blower:

China Fire-Fighting Hest Fume Extration Axial-Flow Blower:

HTF(XGF) series fire special high temperature smoke exhaust fan is developed by the optimum design of new products,it has high efficiency,the characteristics of the flat curve,is conducive to energy conservation.The fan straight by motor drive can according to the different requirements of senior civilian construction,adopts single speed drive form,to chieve the ventilation exhaust and the purpose of fire when using high temperature smoke,widely applicable to senior civil building,oven,underground garage,tunnel,etc.

Specification:

machine(No)	double-speed motor(kW)	single-speed motor(kW)	speed(r/min）	volume flow(m³/h)	total pressure（Pa)	noise dB(A)
3.5	1.1/0.85	1.1	2900	6122~3500	205~552	≦76
3.5	1.1/0.85	0.6	1450	3161~1750	51~136	≦70
4	1.8/1.3	1.5	2900	6524~4525	383~530	≦78
4	1.8/1.3	1.8	1450	3262~2263	96~133	≦77
4.5	2.4/2	2.2	2900	7981~5023	508~698	≦79
4.5	2.4/2	0.8	1450	3881~2512	127~175	≦74
5	3/2.4	3.0	2900	9824~6817	510~752	≦80
5	3/2.4	1.1	1450	4912~3410	127~188	≦75
5.5	4/3.3	4.0	2900	12693~8256	536~756	≦86
5.5	4/3.3	1.5	1450	6347~4128	134~189	≦78
6	5.5/4.5	5.5	2900	16090~13197	510~760	≦86
6	5.5/4.5	1.5	1450	8045~6599	127~190	≦75
6.5	5.5/4.5	5.5	1450	21652~16254	512~702	≦88
6.5	5.5/4.5	2.2	960	14335~10761	224~308	≦82
7	8/6.5	7.5	1450	24380~18908	610~728	≦88
7	8/6.5	3.0	960	16141~12518	267~319	≦80
8	8/6.5	7.5	1450	31421~26012	600~723	≦89
8	8/6.5	3.0	960	20800~17222	263~317	≦80
9	11/9	11.0	1450	33510~17513	562~840	≦90
9	11/9	4.0	960	22186~18216	246~368	≦81
10	11/9	11.0	1450	45679~35000	630~770	≦90
10	11/9	5.5	960	30255~24019	276~338	≦81

machine(No)	double-speed motor(kW)	single-speed motor(kW)	speed(r/min）	volume flow(m³/h)	total pressure（Pa)	noise dB(A)
11	16/13	15	1450	53126~46658	516~726	≦92
11	16/13	5.5	960	39844~34994	290~408	≦83
12	12/17	18.5	960	65862~55651	582~740	≦93
12	12/17	11	720	49396~43311	327~416	≦84
13	12/17	18.5	960	74708~56031	600~807	≦94
13	12/17	11	720	56031~42023	338~454	≦85
14	20/15	22	960	85511~63312	612~812	≦95
14	20/15	11	720	64133~47484	344~458	≦85
15	20/15	22	960	93800~76041	623~819	≦95
15	20/15	11	720	70350~57031	350~460	≦85
16	30/15	30	960	120233~91210	652~912	≦96
16	30/15	15	720	90175~68408	366~513	≦86

machine(No)	double-speed motor(kW)	single-speed motor(kW)	speed(r/min）	volume flow(m³/h)	total pressure（Pa)	noise dB(A)
4	4/3.3	4	2900	6621~3513	522~884	≦79
4	4/3.3	0.75	1450	3794~3031	272~352	≦73
4.5	5.5/4.5	5.5	2900	9427~5002	660~1119	≦80
4.5	5.5/4.5	0.75	1450	4677~2501	263~323	≦74
5	5.5/4.5	5.5	2900	12832~6862	815~1381	≦82
5	5.5/4.5	1.1	1450	6416~3431	204~245	≦76
5.5	8/6.5	7.5	2900	16795~11264	874~1483	≦85
5.5	8/6.5	1.1	1450	8389~5632	219~371	≦79
6	5.5/4.5	5.5	1450	13969~6626	579~850	≦84
6	5.5/4.5	1.5	960	8586~4287	254~372	≦75
6.5	11/9	11	1450	25192~20446	1033~1270	≦88
6.5	11/9	5.5	960	16677~13535	452~557	≦79
7	11/9	11	1450	27185~13890	788~1157	≦89
7	11/9	5.5	960	17998~9198	345~507	≦80
8	16/13	18.5	1450	35381~17690	826~1304	≦90
8	16/13	7.5	960	23424~11712	362~571	≦81
9	22/18.5	22	1450	44488~36276	1110~1490	≦91
9	22/18.5	11	960	29451~24015	486~652	≦82
10	22/18.5	22	1450	53701~40798	984~1437	≦92
10	22/18.5	11	960	35550~27008	431~629	≦83
11	30/15	30	960	60096~48948	1170~1437	≦91
11	30/15	15	720	45072~36711	658~808	≦82
12	30/15	30	960	70100~45992	1205~1480	≦92
12	30/15	15	720	52575~34494	678~832	≦83
13	37/18	37	960	88768~56320	990~1510	≦93
13	37/18	18.5	720	66576~42240	557~849	≦84
14	45/55	45	960	90259~58009	1028~1568	≦94
14	45/55	22	720	67694~43506	578~882	≦85
15	45/22	45	960	116520~82645	912~1412	≦95
15	45/22	22	720	87390~61984	513~794	≦86
16	/	55	720	141086~87352	910~1465	≦84

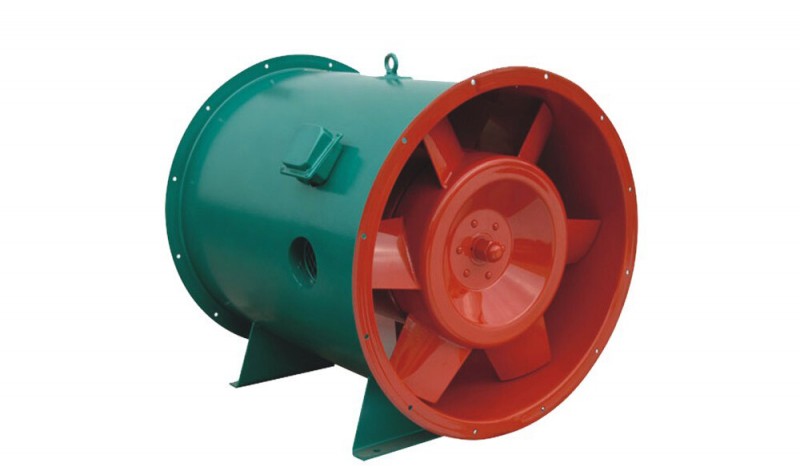

Picture:

Product Advantage:

1.Satisfactory Quality
2.Competitive Price
3.Prompt Delivery
4.7x24 hours service

Packing and Delivery：

1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.

How to Order?

1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
