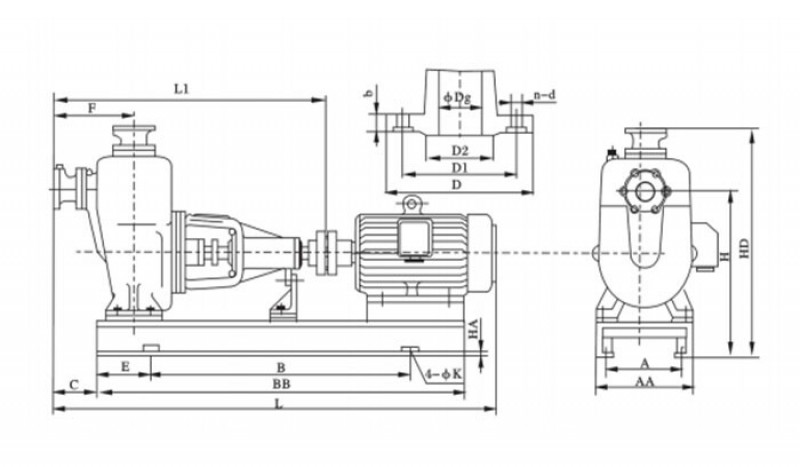

CWZ series horizontal centrifugal self-priming marine pumps
China CWZ series horizontal centrifugal self-priming marine pumps:
CWZ series horizontal centrifugal self-priming marine pumps are well fixed and beautifully shaped and have high self-priming fuction.It can also be installed and used easily, which are best choices for the ships to drain water.
CWZ series horizontal centrifugal self-priming marine pumps are well used in all kinds of ships and warships for ballast, fire control, life water supply on the bilge. It can be used to pump sea water and fresh water, but the mediums temperature should be lower than 80℃.
| Main Technical Data | ||||
| MODEL | CAPACITY | HEAD | RPM | power |
| m3/h | m | kw | ||
| 50CWZ-8 | 21 | 21 | 2870 | 3 |
| 50CWZ-6 | 30 | 2890 | 4 | |
| 50CWZ-5 | 42 | 2900 | 5.5 | |
| 65CWZ-11 | 36 | 21 | 2890 | 4 |
| 65CWZ-8 | 30 | 2900 | 5.5 | |
| 65CWZ-6 | 42 | 2930 | 11 | |
| 65CWZ-5 | 60 | 2930 | 15 | |
| 80CWZ-14 | 60 | 21 | 2900 | 7.5 |
| 80CWZ-11 | 30 | 2930 | 11 | |
| 80CWZ-8 | 42 | 2930 | 15 | |
| 80CWZ-6 | 60 | 2940 | 22 | |
| 80CWZ-5.5 | 75 | 2950 | 30 | |
| 100CWZ-18 | 100 | 21 | 2930 | 11 |
| 1OOCWZ-14 | 30 | 2930 | 15 | |
| 100CWZ-11 | 42 | 2940 | 22 | |
| 100CWZ-8 | 60 | 2950 | 30 | |
| 100CWZ-6 | 85 | 2970 | 45 |
