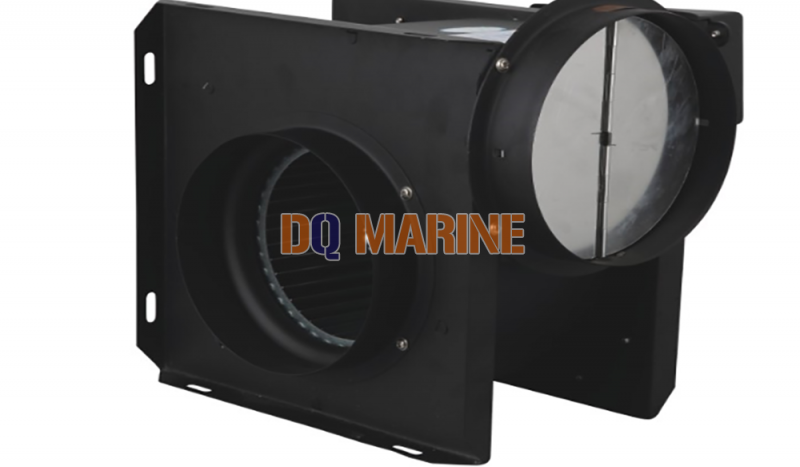

JY Series Low-Noise Pipeline Fan:
JY Series Low-Noise Pipeline Fan Introduction
JY series low-noise centrifugal ventilation machine adopts special technology design with mold, manufacturing multi-blade centrifugal impeller. The machine has the advantages of beautiful appearance, small size, low noise, large air volume, light weight, stable operation and other excellent features. It can effectively carry out the air regulation and control. The uses of the places should not contain flammable, explosive, corrosive gas, and the temperature should not be higher than 60 ℃.
Main Technical Parameter
| Machine No. | Power (W) | Volt (V) | Rotation Speed (r/min) | Volume Flow (m3/h) | Total Pressure (Pa) | Noise (dB) (≤） |
| JY100-2 | 35 | 220 | 2300 | 280 | 70 | 62 |
| JY100-4 | 17 | 220 | 1250 | 153 | 60 | 43 |
| JY120-2 | 90 | 220 | 2200 | 633 | 112 | 65 |
| JY120-4 | 33 | 220 | 1100 | 317 | 50 | 43 |
| JY150-4 | 59 | 220 | 1100 | 412 | 132 | 48 |
| 80 | 220 | 1380 | 481 | 142 | 50 | |
| JY150-6 | 42 | 220 | 800 | 280 | 118 | 41 |
| 50 | 220 | 960 | 334 | 130 | 47 | |
| JY190-4 | 160 | 220 | 1100 | 729 | 120 | 61 |
| 200 | 220 | 1410 | 935 | 139 | 63 | |
| JY190-6 | 115 | 220 | 800 | 530 | 103 | 48 |
| 130 | 220 | 960 | 636 | 112 | 49 | |
| JY210-4 | 290 | 220 | 1100 | 985 | 145 | 63 |
| 330 | 220 | 1400 | 1253 | 167 | 65 | |
| JY210-6 | 200 | 220 | 800 | 716 | 125 | 49 |
| 230 | 220 | 960 | 860 | 135 | 50 | |
| JY210-8 | 150 | 220 | 700 | 627 | 108 | 48 |
