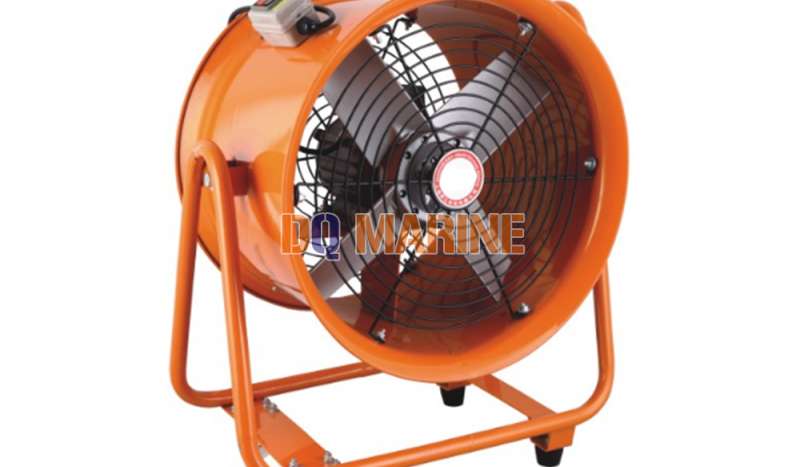

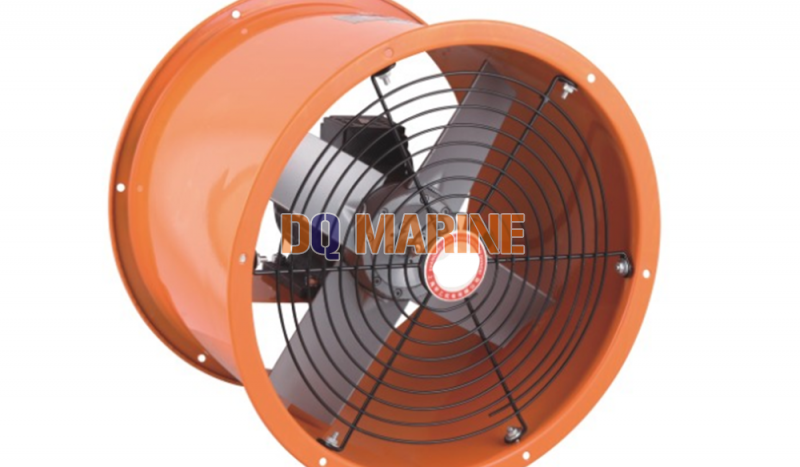

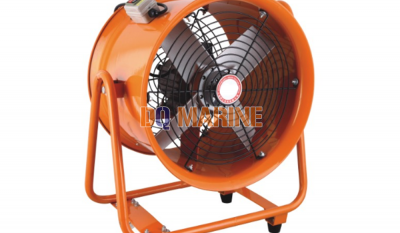

JY3-SF Axial-flow Fans
JYW-SF Axial-flow Fans Introduction
Adjustable fan blade, Movable, Energy-efficient, Low-voltage, Low Nosie.
Low power and single –suction impeller, unique design, scientifically structured.
Smooth operation, high efficiency.
The Main Technical Parameters
| Model | Rotation Speed (r/min) | Matching Motor (kw) | Volume Flow (m3/h) | Total Pressure (Pa) | Nosie (dB) |
| JY3-SF(250mm) | 2800 | 0.25 | 2100 | 215 | 65 |
| 1450 | 0.09 | 1000 | 35 | 59 | |
| JY3-SF(300mm) | 2800 | 0.37 | 3000 | 230 | 68 |
| 1450 | 0.12 | 2000 | 59 | 61 | |
| JY3-SF(400mm) | 2800 | 1.1 | 8513 | 380 | 77 |
| 1450 | 0.37 | 5870 | 149 | 73 | |
| JY3-SF(450mm) | 1450 | 0.55 | 8000 | 150 | 73 |
| JY3-SF(500mm) | 1450 | 0.75 | 10000 | 170 | 74 |
| JY3-SF(600mm) | 1450 | 2.2 | 18700 | 300 | 80 |
| 960 | 1.1 | 14500 | 180 | 75 | |
| JY3-SF(700mm) | 1450 | 3 | 24500 | 350 | 85 |
| 960 | 1.5 | 22000 | 210 | 80 | |
| JY3-SF(800mm) | 1450 | 4 | 37200 | 380 | 88 |
| 960 | 2.2 | 28000 | 230 | 82 |
