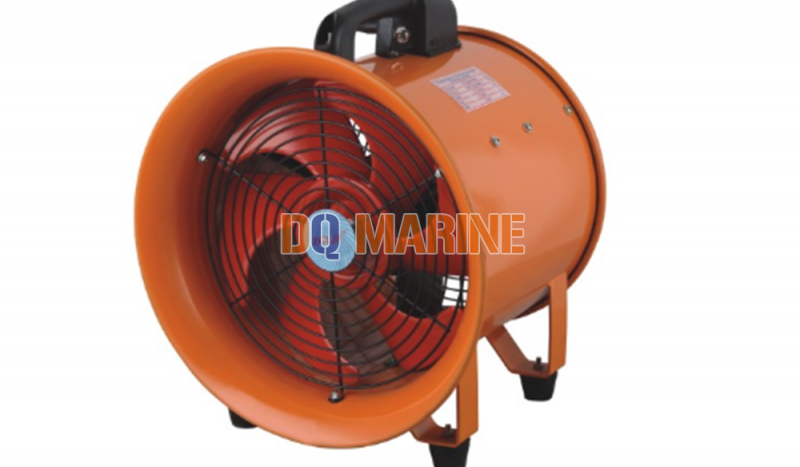

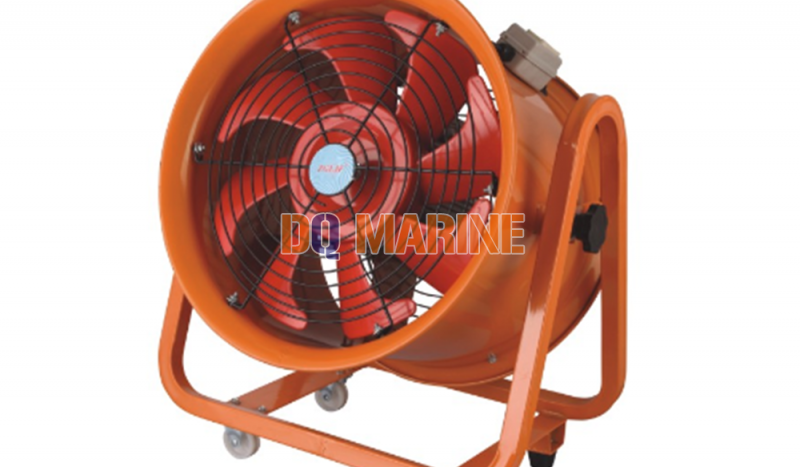

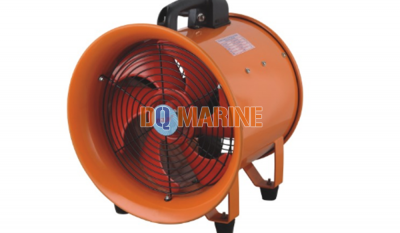

Sickle Blade Axial-Flow Fan
Sickle Blade Axial-Flow Fan Introduction
The sickle blade ventilator is blessed with low power consumption, large wind volume, high wind pressure, and low noise and so on. Moreover it is reasonably structure and conveniently applied. Its surface is clean, bright and durable after advanced spraying process.
Main Technical Parameter
| Size/mm | Rotation Speed (r/min) | Volume Flow (m3/min) | Total Pressure (Pa) | Volt (V) | Power (W) | Frequency (Hz) |
| 250 (10'') | 2900/3300 | 50/60 | 350/500 | 220/240/110 | 380/430 | 50/60 |
| 300 (12'') | 2900/3300 | 70/77 | 390/505 | 220/240/110 | 580/630 | 50/60 |
| 400 (16'') | 2900/3300 | 110/125 | 705/785 | 220/240/110 | 1100 | 50/60 |
| 500 (20'') | 1450/1750 | 135/150 | 405/465 | 220/240/110 | 1100 | 50/60 |
| 600 (24'') | 1450/1750 | 245 | 485/545 | 220/240/110 | 2200 | 50/60 |
| 700 (28'') | 1450 | 315 | 585/655 | 380 | 3000 | 50/60 |
