Marine Forged Steel Angle Air Valve JIS F7337
China Marine Forged Steel Angle Air Valve JIS F7337:

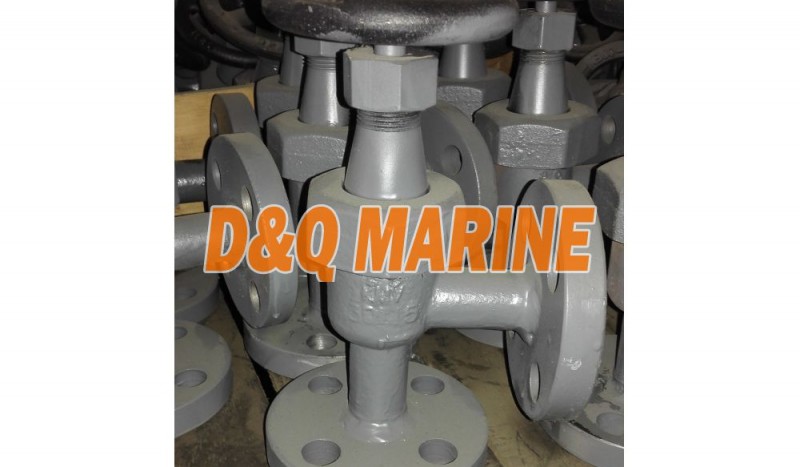

Marine Forged Steel Angle Air Valve JIS F7337 is used on the marine compressed air pipe system to shut off/turn on the air. There are two types, S type is union type, F type is flange type, flange size as per JIS 30K.
Technical Specification:
1.Design Standard: JIS F7337
2.Max Working Pressure: 4.6Mpa
3.Medium: compressed air
4.Watertight Pressure Test: Body---6.9Mpa, Sea---5.06Mpa
Main Material:
1. Body---Forged Steel
2.Seat---Stainless Steel
3. Stem---Stainless Steel
Main Size(mm):
| IMPA CODE | Type | SIZE | Pipe Out. Dia | L1 | L2 | L3 | K | D | C | n | h | t | H | B2 | D3 | Weight | |
| Copper | Steel | ||||||||||||||||
| 750751 | Type "S" | 6 | 8 & 10 | 10.5 | 42 | 38 | 51 | 12 | - | - | - | - | - | 115 | 30 | M20 x 1.5 | 1.23 |
| 750752 | 10 | 15 | 17.3 | 46 | 45 | 58 | 16 | - | - | - | - | - | 130 | 41 | M24 x 2 | 1.75 | |
| 750756 | Type "F" | 15 | - | - | 90 | - | - | - | 115 | 80 | 4 | 19 | 20 | 175 | - | - | 5.59 |
| 750757 | 20 | - | - | 95 | - | - | - | 120 | 85 | 4 | 19 | 20 | 185 | - | - | 7 | |
| 750758 | 25 | - | - | 100 | - | - | - | 130 | 95 | 4 | 19 | 22 | 210 | - | - | 9.11 | |
