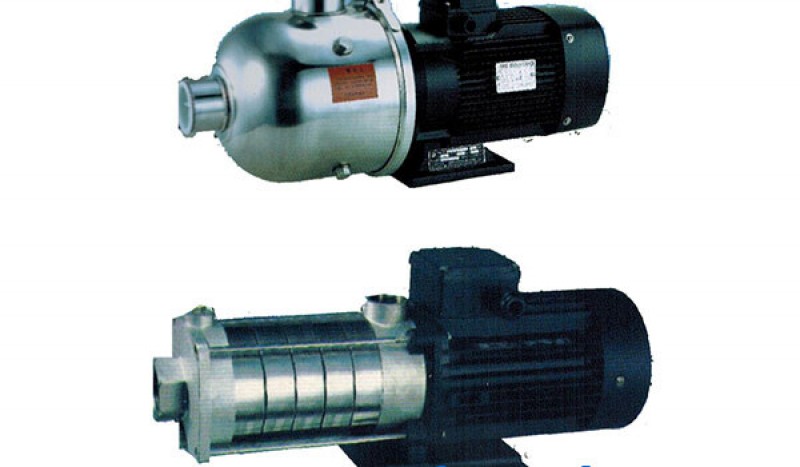

CHL CHDF Series Light Horizontal Steel Multistage Centrifugal Pump
China CHL CHDF Series Light Horizontal Steel Multistage Centrifugal Pump:
CHL/CHDF series light horizontal stainless steel multi-stage centrifugal pump, with horizontal extension shaft motor, axial suction, radial discharge.The pump flow parts are made of high quality stainless steel plate stamping welding, so that the pump can also be used in mildly corrosive medium.The product USES the fine hydraulic model and the advanced manufacture craft, has the suitable scope to be wide, the highly effective energy conservation, the quality is reliable and so on the characteristic.
CHL,CHDF Series Light Horizontal Steel Multistage Centrifugal Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 25CHL2-20 | 2 | 14 | 2900 | 0.37 |
| 25CHL2-30 | 2 | 21 | 2900 | 0.55 |
| 25CHL2-40 | 2 | 28 | 2900 | 0.55 |
| 25CHL2-50 | 2 | 35 | 2900 | 0.55 |
| 25CHL2-60 | 2 | 42 | 2900 | 0.75 |
| 32CHL4-20 | 4 | 15 | 2900 | 0.55 |
| 32CHL4-30 | 4 | 22 | 2900 | 0.75 |
| 32CHL4-40 | 4 | 30 | 2900 | 0.75 |
| 50CHL8-10 | 8 | 8.5 | 2900 | 0.75 |
| 50CHL8-20 | 8 | 17 | 2900 | 0.75 |
| 50CHL8-30 | 8 | 25.5 | 2900 | 1.1 |
| 50CHL8-40 | 8 | 34 | 2900 | 1.5 |
| 50CHL8-50 | 8 | 42.5/39/32.5 | 2900 | 2.2 |
| 50CHL16-10 | 16 | 10 | 2900 | 3 |
| 50CHL16-20 | 16 | 21 | 2900 | 3 |
| 50CHL16-30 | 16 | 32 | 2900 | 3 |
| 25CHDF2-20 | 2 | 14 | 2900 | 0.37 |
| 25CHDF2-30 | 2 | 21 | 2900 | 0.55 |
| 25CHDF2-40 | 2 | 28 | 2900 | 0.55 |
| 25CHDF2-50 | 2 | 35 | 2900 | 0.75 |
| 25CHDF2-60 | 2 | 42 | 2900 | 0.55 |
| Also have bigger pumps, pls contact us for more information. | ||||
