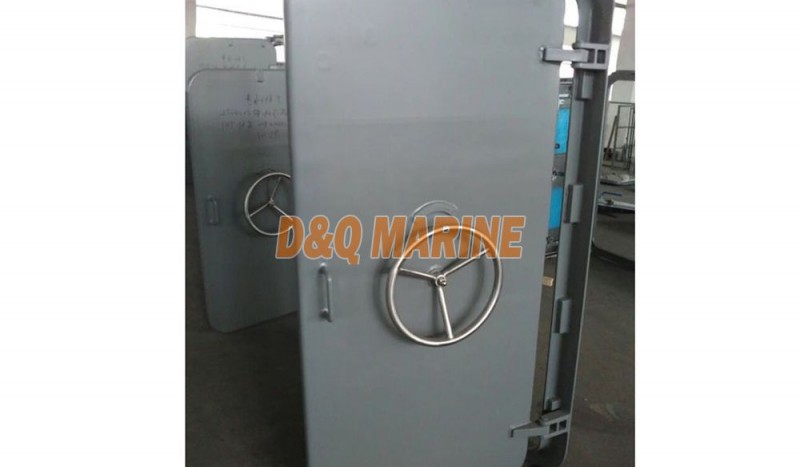

Marine Steel Pressure Resistant Watertight Door
Description:
This door's applied water pressure is 0.07-0.15Mpa
Technical Data:
|
SIZE OF DOORWAY BXHXR |
SIZE OF FRAME B1XH1XR1 |
SIZE OF OUTLINE B2XH2XR2 |
THICKNESS T |
WEIGHT KG |
| 600X1500X100 | 700X1600X150 | 800X1700X200 | 8 | 206 |
| 600X1600X100 | 700X1700X150 | 800X1800X200 | 8 | 212 |
| 700X1500X100 | 800X1600X150 | 900X1700X200 | 8 | 227 |
| 700X1600X100 | 800X1700X150 | 900X1800X200 | 8 | 239 |
| 700X1700X100 | 800X1800X150 | 900X1900X200 | 8 | 250 |
| 800X1500X100 | 900X1600X150 | 1000X1700X200 | 8 | 248 |
| 800X1600X100 | 900X1700X150 | 1000X1800X200 | 8 | 263 |
| 800X1700X100 | 900X1800X150 | 1000X1900X200 | 8 | 289 |
