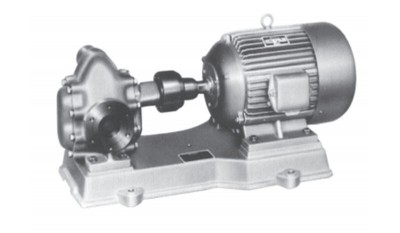

KCB-55 KCB series gear pump:
China KCB-55 KCB series gear pump:
It applies to delivery non-corrosive lubricating-oil or equivalent liquid without solid particles and fibres at temperature below 300℃.
| Main Technical Data | ||||
| Model |
Capacity Q |
Exhaust pressure MPa |
Speed r/min |
Power |
| KCB-18.3 | 1.1 | 1.45 | 1400 | 1.5 |
| KCB-33.3 | 2 | 1.45 | 1420 | 2.2 |
| KCB-55 | 3.3 | 0.33 | 1400 | 1.5 |
| KCB-83.3 | 5 | 0.33 | 1420 | 2.2 |
| KCB-135 | 8 | 0.33 | 940 | 2.2 |
| KCB-200 | 12 | 0.33 | 1440 | 4 |
| KCB-300 | 18 | 0.36 | 970 | 5.5 |
| KCB-483.3 | 29 | 0.36 | 1470 | 11 |
| KCB-633 | 38 | 0.28 | 740 | 11 |
| KCB-960 | 58 | 0.28 | 980 | 22 |
| KCB-1200 | 72 | 0.6 | 740 | 37 |
| KCB-1600 | 96 | 0.6 | 985 | 45 |
| KCB-1800 | 108 | 0.6 | 740 | 55 |
| KCB-2500 | 150 | 0.6 | 989 | 75 |
| KCB-2850 | 171 | 0.6 | 743 | 90 |
| KCB-3800 | 228 | 0.6 | 989 | 110 |
| KCB-4100 | 246 | 0.6 | 744 | 132 |
| KCB-5400 | 324 | 0.6 | 989 | 160 |
| KCB-5600 | 336 | 0.6 | 744 | 160 |
| KCB-7600 | 456 | 0.6 | 989 | 200 |
| Also have bigger pumps, pls contact us for more information. | ||||
