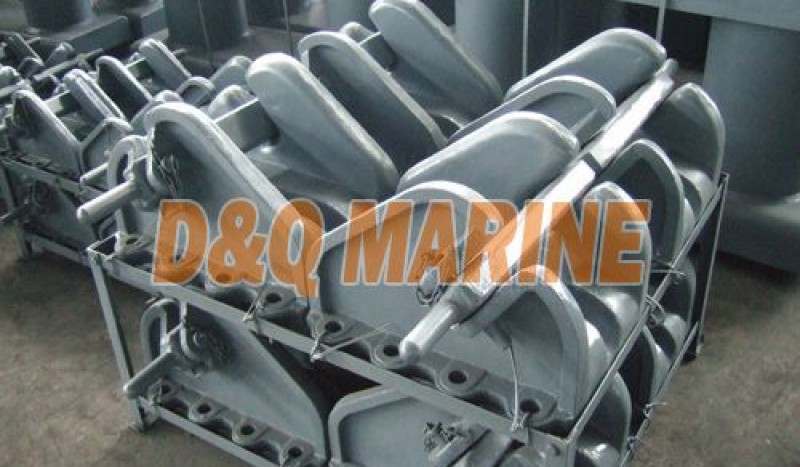

JISF2002 Bar Type Chain Stopper
JISF2002 Bar Type Chain Stopper
Description:
Material:cast iron or cast steel both ok.
Certificate:BV,ABS,LR,CCS etc.
Drawing:
Size Chart:
| Nominal Chain Dia.(mm) | Dimensions(mm) | |||||
| B | H | L | h | B2 | weight(kg) | |
| 17-19 | 195 | 190 | 270 | 32 | 32 | 22 |
| 20-22 | 215 | 216 | 310 | 37 | 38 | 31 |
| 23-25 | 240 | 241 | 345 | 43 | 43 | 44 |
| 26-28 | 265 | 270 | 385 | 48 | 49 | 58 |
| 30-32 | 305 | 305 | 435 | 54 | 55 | 89 |
| 34-36 | 340 | 342 | 490 | 61 | 61 | 122 |
| 38-40 | 370 | 378 | 540 | 68 | 65 | 160 |
| 42-44 | 405 | 412 | 590 | 75 | 72 | 208 |
| 46-48 | 440 | 450 | 640 | 82 | 78 | 272 |
| 50-52 | 470 | 491 | 695 | 88 | 85 | 338 |
| 54-56 | 495 | 522 | 745 | 95 | 92 | 414 |
| 58-60 | 530 | 564 | 795 | 102 | 98 | 505 |
| 62-64 | 565 | 600 | 850 | 109 | 104 | 618 |
| 66-68 | 590 | 635 | 900 | 116 | 110 | 737 |
