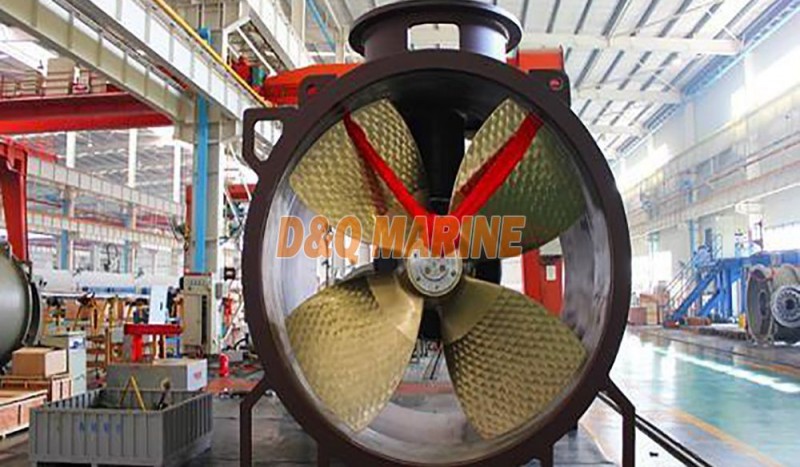

Diesel Engine Drive Bow Thruster:
Diesel Engine Drive Bow Thruster Introduction:
Engine driven bow thruster for direct engine drive are available in the range of 63 to 1360 KW.The engine must be provided with a marine gear with a reduction ratio to match the input speed.A cardan shaft connects between the output shaft of the marine gear and the input shaft.
Diesel Engine Drive Bow Thruster Feature:
1. CCS,BV,LR,DNV,ABS etc certificate.2.easy installation and maintenance.
3.Low noise emission.
Bow thruster can be driven by electric motor,hydraulic motor and engine,the construction of engine drive type bow thruster is the most brief.Engine drive bow thruster can save cost,control engine direct control the thruster, reliablity is very high.
When fixed-pitch propellers are used, electric and hydraulic motors allow the direction of thrust to be reversed. An additional reversing gearbox is required if the thruster is powered by a diesel engine.
1.Tough and rational structural design has accomplished superior strength ,Especially strong and durable driving shaft and seal are adopted for longer operation.
2.Employing thicker duct plate, developing new propeller design and so on have achieved less noise and vibration which follow comfortable living environment on board.
3.Especially reduced duct lip and has a structure that it is able to weld anywhere on outer surface of duct for installation, On the periodical inspection, it is almost not needed to change parts except seal.
Technical parameters:
|
Model |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
|||||||||
|
Max Input Power (kW/h.p) |
63 |
50 |
125 |
100 |
200 |
200 |
315 |
315 |
350 |
280 |
500 |
500 |
550 |
450 |
900 |
735 |
1250 |
1000 |
|
Max Thrust (kN) |
9.5 |
7.9 |
17.5 |
14.5 |
28 |
28 |
44 |
44 |
50 |
42 |
70 |
70 |
84 |
73 |
125 |
107 |
183 |
155 |
|
Drum Length (mm) |
1000 |
1000 |
1000 |
1500 |
1500 |
1500 |
1500 |
1500 |
2000 |
|||||||||
|
Pipe Thickness (mm) |
12 |
12 |
15 |
20 |
20 |
20 |
20 |
20 |
25 |
|||||||||
|
Propeller Diameter (mm) |
500 |
630 |
800 |
1000 |
1100 |
1250 |
1500 |
1750 |
2100 |
|||||||||
|
Weight (KG) |
300 |
430 |
730 |
1450 |
1510 |
2450 |
2680 |
5400 |
8700 |
|||||||||
