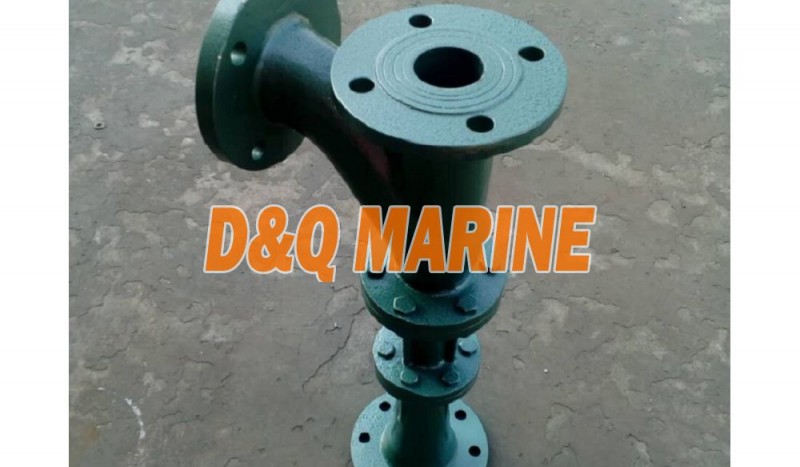

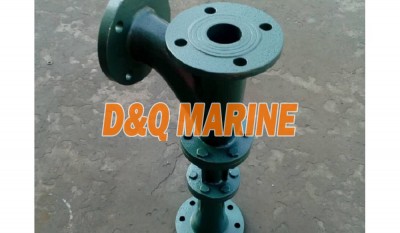

CPJ Marine Injection pump
Category:
Marine Injection Pump
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
CPJ Marine Injection pump:
CPJ Marine Injection Pump

CPJ type jet pump inlet, outlet and nozzle are on the same axis,have high efficienay, easy installation Has a self-priming performance,can work continuously steadily,No moving parts, long service life. Hydrophobic system is mainly used in ships, also can be used for environmental protection, chemical industry, water conservancy, building materials, etc, for sea water, mixed liquid, river dredging, conveying powder, etc


Type explanation

For the type CPJ40-50-65

CP stand for marine injector, J stand for working nozzle figure

40 stand for working water pipe diameter -mm

50 stand for inlet diameter-mm

65 stand for outlet diameter-mm

Technical parameter:

Type Capacity suc'head working pressure water consumption Delivery-pressure
m3/h m mpa m3/h Mpa
CPJ40-50-65 10 5 1.2 15 0.25
CPJ50-80-80 30 3 0.8 30 0.12
CPJ80-100-100 70 3 0.7 56 0.1
CPJ100-100-125 50 2.5 0.6 115 0.22
CPJ100-125-125 100 3 1 110 0.2
CPJ100-150-150 120 3 1 120 0.2
CPJ125-150-150 130 5 0.9 320 0.3
CPJ125-150-200 100 7 0.7 150 0.12
CPJ125-200-200 130 5 1 250 0.3
CPJ150-200-200 300 4 1.25 400 0.25
CPJ150-200-250 300 5 1.15 470 0.25
CPJ200-200-250 170 5 0.25 600 0.1
CPJ200-250-300 600 4 1.2 340 0.1
CPJ250-250-300 250 4 0.3 1050 0.15
CPJ250-300-350 630 5 1.3 750 0.25
CPJ300-300-350 400 5 0.3 1750 0.15
