CB286-84 Lever Chain Stopper
CB286-84 Lever Chain Stopper
Description:

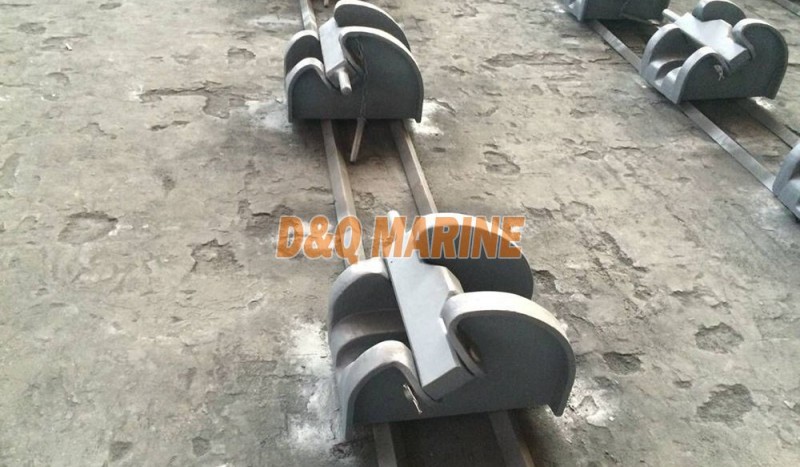

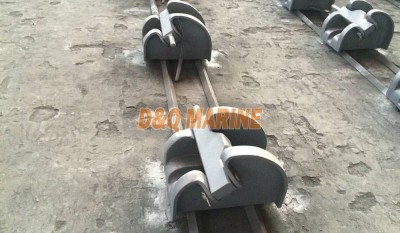

Complete size chain stopper,and it is the standard product,it is the best option to apply classification soiety certificate.
Cast steel and cast iron material available.
Drawing:
Size Chart:
| Chain diameter | 12.5-14 | 16-17.5 | 19-20.5 | 22-24 | 26-28 | 30-32 |
| B | 142 | 170 | 193 | 219 | 214 | 274 |
| H | 162 | 190 | 216 | 241 | 270 | 305 |
| L | 235 | 270 | 310 | 345 | 385 | 435 |
| Weld angle(f) | 5 | 6 | 6 | 7 | 7 | 9 |
| Weight(kg) | 20 | 25 | 30 | 37 | 46 | 56 |
| Chain diameter | 34-36 | 38-40 | 42-44 | 46-48 | 50-52 | 54-56 |
| B | 304 | 336 | 366 | 397 | 428 | 457 |
| H | 342 | 378 | 412 | 450 | 491 | 528 |
| L | 490 | 540 | 590 | 640 | 695 | 745 |
| Weld angle(f) | 9 | 10 | 10 | 12 | 12 | 13 |
| Weight(kg) | 69 | 85 | 108 | 139 | 173 | 210 |
| Chain diameter | 58-60 | 62-64 | 66-68 |
| B | 488 | 517 | 547 |
| H | 564 | 600 | 635 |
| L | 795 | 850 | 900 |
| Weld angle(f) | 13 | 14 | 14 |
| Weight(kg) | 210 | 305 | 363 |
