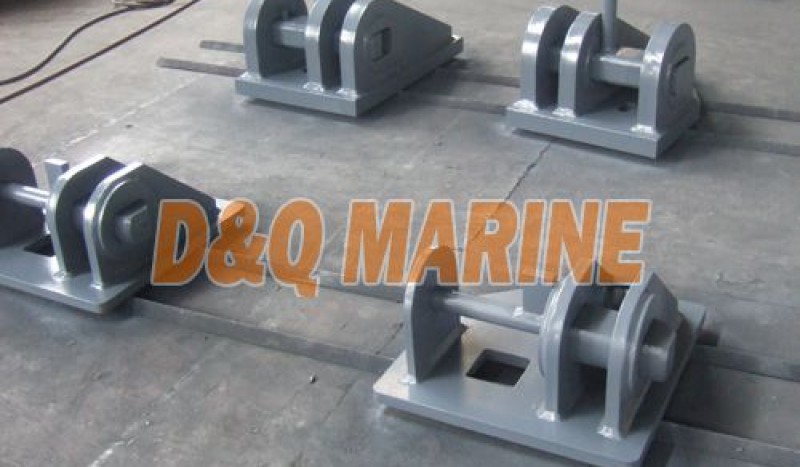

Smith Towing Bracket
Smith Towing Bracket
Description:
We have smith towing bracket,JISF2029 towing bracket,OCIMF towing bracket available.
SWL can reach 300T at maximum.
Drawing:
Size Chart:
| Smith towing bracket | ||||||
| Nominal Dia.(mm) | Dimensions(mm) | Mass(kg) | SWL(KN) | MBL(KN) | ||
| A | B | F | ||||
| 54 | 720 | 650 | 205 | 195 | 1000 | 2000 |
| 76 | 900 | 800 | 240 | 390 | 2000 | 4000 |
| 84 | 1018 | 905 | 273 | 560 | 2500 | 5000 |
| 95 | 1120 | 940 | 290 | 760 | 3000 | 6570 |
