JISF2023 cast steel bar type chain stopper

Category: Marine Chain Stopper
Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
FOB Price: Get Latest Price Now
Warranty: 12 Months unless specified otherwise
Place of Origin: China
Request a Quote Print Page Dowdload Page

We can supply according to your requirement.

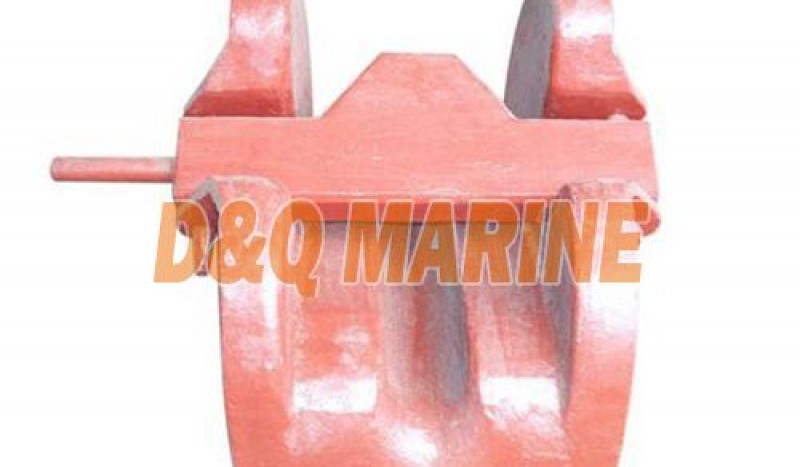

JISF2023 cast steel bar type chain stopper

JISF2023 cast steel bar type chain stopper

Description:

Bar type chain stopper structure is very simple,it possess good wear and corrosion resistance,can guarantee the chain stopper effectively, the service time is long.

Certificate:CCS,BV,ABS,LR,NK, DNV&GL etc.

Drawing:

Size Chart:

JIS F2023-1976 Cast Steel Bar Type Chain Stopper
Diameter of Apply Anchor Chain (mm) 17~19 20~22 23~25 26~28 30~32 34~36
A(mm) 190 216 241 270 305 342
B(mm) 270 310 345 385 435 490
C(mm) 200 226 256 280 320 254
D(mm) 134 153 175 193 220 246
Weight(kg) 17 24 33 44 68 92
