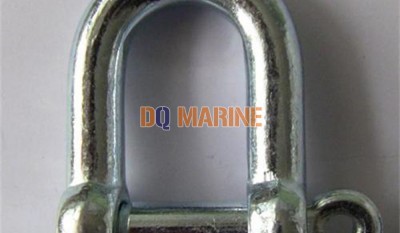

JIS Type Shackles without Collar:
Description
This product adopts the Japanese standard, the material is Q235 carbon steel, and the production process is the free forging process. Surface can be electro galvanizing, hot galvanizing, dacromet, environmental protection galvanizing, and spray - plastic treatment.
Details
This type is divided into two sizes
| Size | Dimensions(mm) | WLL (t) | Weight (Ibs) | |||||
| mm | in | B | D | L | d1 | A | B | |
| 4.8 | 3/16 | 10 | 10 | 18.5 | 5 | 0.09 | 0.028 | 0.05 |
| 6 | 1/4 | 12 | 11 | 25 | 6.5 | 0.15 | 0.057 | 0.14 |
| 8 | 5/16 | 14 | 15 | 31 | 8.5 | 0.25 | 0.1 | 0.14 |
| 9 | 3/8 | 18 | 17 | 36 | 10 | 0.4 | 0.15 | 0.17 |
| 12 | 1/2 | 24 | 23 | 46 | 13 | 0.6 | 0.37 | 0.42 |
| 16 | 5/8 | 30 | 32 | 59 | 17 | 0.8 | 0.88 | 1.05 |
| 19 | 3/4 | 36 | 37 | 74 | 20 | 1 | 1.54 | 1.71 |
| 22 | 7/8 | 43 | 43 | 86 | 23 | 1.5 | 2.42 | 2.6 |
| 25 | 1 | 47 | 50 | 95 | 27 | 2 | 3.75 | 3.97 |
| 28 | 1 1/8 | 55 | 56 | 110 | 30 | 2.5 | 5.29 | 5.62 |
| 32 | 1 1/4 | 64 | 64 | 130 | 34 | 3.2 | 7.9 | 8.6 |
| 38 | 1 1/2 | 76 | 76 | 145 | 40 | 4.2 | 13..22 | 15.2 |
| 44 | 1 3/4 | 80 | 90 | 160 | 47 | 6.5 | 22.04 | |
| 50 | 2 | 100 | 100 | 185 | 53 | 8 | 26.46 | |
| 65 | 2 1/2 | 110 | 130 | 240 | 67 | 15 | 61.73 | |
| 75 | 3 | 120 | 150 | 300 | 78 | 20 | 97 | |
