5T Electric Crane

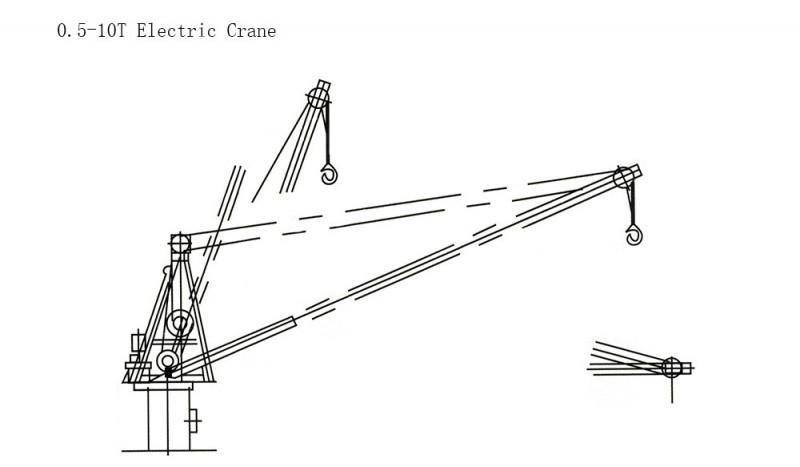

0.5-10T Electric Crane
A crane is a large deck machinery on board, which is a device for loading and unloading cargo on ships. According to the power source, it is divided into three types: manual, electric and hydraulic.
Technical specifications
|
S.W.L (t) |
Working Radius (m) |
Lifting Height (m) |
Lifting Speed (m/min) |
Luffing Time (s) |
Rotating Velocity (r/min) |
| 0.5 | 3.7-12 | 25 | 15 | 25 | 0.7 |
| 1 | 3.7-12 | 25 | 15 | 35 | 0.7 |
| 2 | 3.7-12 | 25 | 15 | 40 | 0.8 |
| 3 | 3.7-12 | 25 | 15 | 45 | 0.8 |
| 3 | 5.6-18 | 25 | 15 | 50 | 1.1 |
| 5 | 3.7-12 | 30 | 15 | 50 | 0.8 |
| 5 | 5.6-18 | 30 | 15 | 55 | 1 |
| 10 | 3.7-12 | 30 | 15 | 60 | 0.8 |
| 10 | 5.6-18 | 30 | 15 | 70 | 1 |
