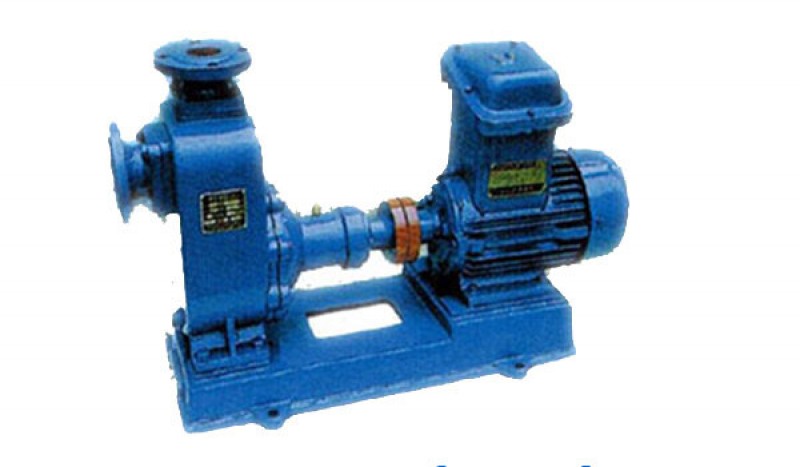

CYZA CYZLA Series Marine Selfcusked Centrifugal oil Pump
China CYZA CYZLA Series Marine Selfcusked Centrifugal oil Pump:
CYZ-A self-priming centrifugal oil pump is suitable for Marine cargo oil pump, bilge pump, fire pump, ballast pump and machine cooling water circulation pump, etc., to convey petroleum products such as gasoline, kerosene, diesel, aviation coal and sea water and water respectively, and corrosion resistant mechanical seal can be used for conveying chemical liquid.
CYZ-A,CYZL-A Series Marine Self-cusked Centrifugal oil Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 25CYZ-A-20 | 3.2 | 20 | 2900 | 0.85 |
| 25CYZ-A-32 | 3.2 | 32 | 2900 | 1.1 |
| 40CYZ-A-20 | 6.3 | 20 | 2900 | 1.1 |
| 40CYZ-A-40 | 10 | 40 | 2900 | 4 |
| 50CYZ-A-12 | 15 | 12 | 2900 | 1.5 |
| 50CYZ-A-20 | 18 | 20 | 2900 | 2.2 |
| 50CYZ-A-30 | 20 | 30 | 2900 | 4 |
| 50CYZ-A-35 | 14 | 35 | 2900 | 4 |
| 50CYZ-A-40 | 10 | 40 | 2900 | 4 |
| 50CYZ-A-50 | 12.5 | 50 | 2900 | 5.5 |
| 50CYZ-A-60 | 15 | 60 | 2900 | 7.5 |
| 50CYZ-A-75 | 20 | 75 | 2900 | 11 |
| 65CYZ-A-15 | 30 | 15 | 2900 | 3 |
| 65CYZ-A-32 | 25 | 32 | 2900 | 5.5 |
| 80CYZ-A-13 | 35 | 13 | 2900 | 4 |
| 80CYZ-A-17 | 43 | 17 | 2900 | 5.5 |
| 80CYZ-A-22 | 40 | 22 | 2900 | 7.5 |
| 80CYZ-A-25 | 50 | 25 | 2900 | 7.5 |
| 80CYZ-A-32 | 50 | 32 | 2900 | 18.5 |
| 80CYZ-A-55 | 60 | 55 | 2900 | 22 |
| 80CYZ-A-70 | 60 | 70 | 2900 | 11 |
| Also have bigger pumps, pls contact us for more information. | ||||
