QW(WQ) YW LW GW Series Efficiently Non-blockage Sewage Pump
China QW(WQ) YW LW GW Series Efficiently Non-blockage Sewage Pump:
WQ type non-clogging submersible sewage pump is a new generation of pump product developed successfully on the basis of introducing foreign advanced technology and combining with the use characteristics of domestic pumps.In the discharge of solid particles and long fiber waste, has a unique effect.
This series of pumps with unique impeller structure and new mechanical seal, can effectively transport containing solid and long fiber.Compared with the traditional impeller, the pump impeller adopts the form of single flow channel or double flow channel, which is similar to a bend pipe with the same section size. It has very good flow passage, and is equipped with a reasonable volute, so that the pump has high efficiency, the impeller through the static and dynamic balance test, so that the pump in operation without vibration.

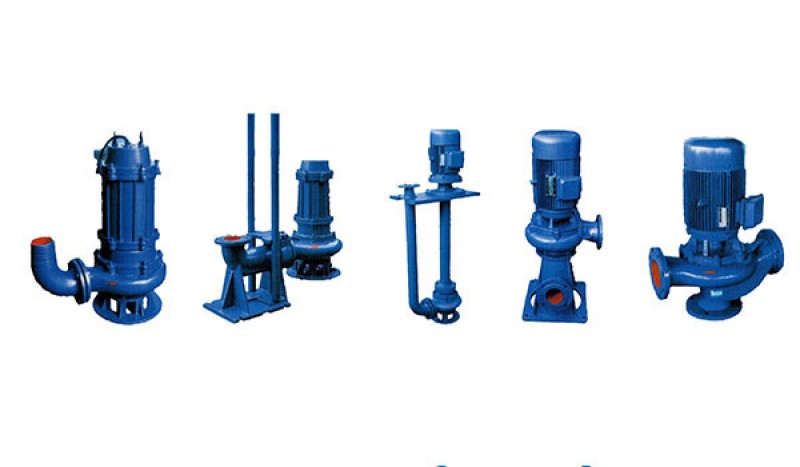

QW(WQ),YW,LW,GW Series Efficiently Non-blockage Sewage Pump
,YW,LW,GW-Series-Efficiently-Non-blockage-Sewage-Pump-1.jpg)
Main Technical Data
| Model | Capacity m³/h | Head m | Rev speed r/min | Motor power KW |
| 25-8-22-1.1 | 8 | 22 | 2825 | 1.1 |
| 32-12-15-1.1 | 12 | 15 | 2825 | 1.1 |
| 40-15-15-1.5 | 16 | 15 | 2840 | 1.5 |
| 40-15-30-2.2 | 15 | 30 | 2840 | 2.2 |
| 50-20-7-0.75 | 20 | 7 | 1390 | 0.75 |
| 50-20-15-1.5 | 10 | 10 | 1390 | 0.75 |
| 50-15-25-2.2 | 20 | 15 | 2840 | 1.5 |
| 50-18-30-3 | 15 | 25 | 2840 | 2.2 |
| 50-25-32-5.5 | 18 | 30 | 2880 | 3 |
| 50-20-40-7.5 | 25 | 32 | 2900 | 5.5 |
| 65-25-15-2.2 | 20 | 40 | 2900 | 7.5 |
| 65-37-13-3 | 25 | 15 | 2840 | 2.2 |
| 65-25-30-4 | 37 | 13 | 2880 | 3 |
| 65-30-40-7.5 | 25 | 30 | 2900 | 4 |
| 65-35-50-11 | 30 | 40 | 2900 | 7.5 |
| 65-35-60-15 | 25 | 50 | 2840 | 2.2 |
| 80-40-7-2.2 | 35 | 60 | 2880 | 3 |
| 80-43-13-3 | 37 | 7 | 2900 | 4 |
| 80-40-15-4 | 20 | 13 | 2930 | 7.5 |
| 80-65-25-7.5 | 40 | 15 | 2930 | 11 |
| 100-80-10-4 | 43 | 25 | 1420 | 15 |
| Also have bigger pumps, pls contact us for more information. | ||||
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
