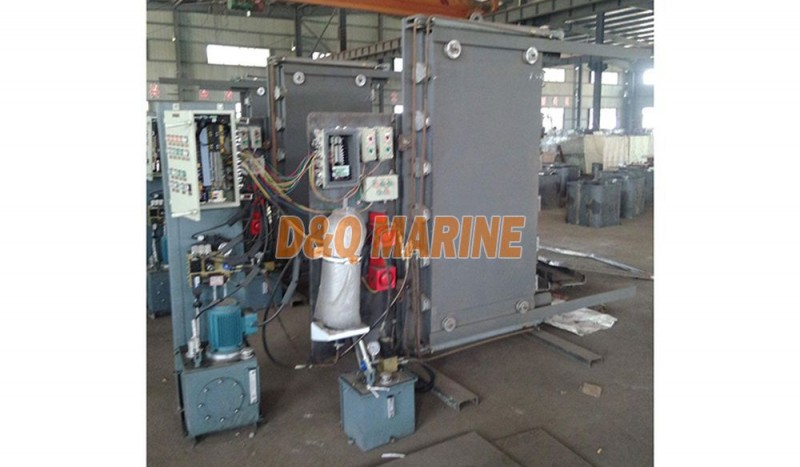

Hydraulic Sliding Watertight Door
Description:
Manual hydraulic sliding door for horizontal sliding door as shown, the door of the hydraulic system is equipped with three sets of hand control device, can deck on both sides of the door, and a position separately control opening and closing of the door.Each manual control devices have a hand pump and manual reversing valve.The door of the door plank, frame plate, guide plate for steel components, such as frame of steel.The door can be used in the separation between deck cargo compartment watertight compartment wall.
Technical Data:
|
SIZE OF DOORWAY B L |
SIZE OF FRAME B1 L1 |
SIZE OF OPENING B2 L2 |
OPENING DIRECTTION |
WEIGHT KG |
| 600 1000 | 800 1200 | 860 1360 |
LIFT RIGHT |
600 |
| 600 1200 | 800 1400 | 860 1560 | 670 | |
| 600 1400 | 800 1600 | 860 1760 | 785 | |
| 700 1200 | 900 1400 | 960 1560 | 795 | |
| 700 1400 | 900 1600 | 960 1760 | 890 | |
| 700 1500 | 900 1700 | 960 1860 | 985 |
