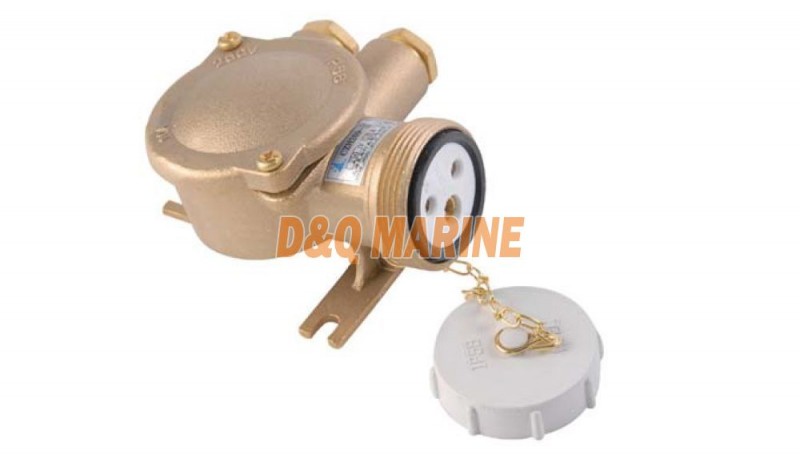

CZH 10A/16A Marine Brass Sockets
Products feature and Products certification
1. Products protection class: IP56.
2.Cable outside diameter is Φ12mm.
3. Products approved by CE (European Conformity) and CCS (China Classification Society).
Adopt Standard
DIN89262
Installation
CZH 10A/16A Marine Brass Sockets Specification
| Voltage(V) | 24 | 125 | 250 | 500 | |
| Code | 1141 | ||||
| General Cable Type | CZH101-1 | CZH101-2 | CZH101-3 | CZH101-4 | CZH101-5 |
| Shield Cable Type | CZH111-1 | CZH111-2 | CZH111-3 | CZH111-4 | CZH111-5 |
| Weight(Kg) | 1.1 | 1.2 | 1.3 | ||
| Code | 1141/R | ||||
| General Cable Type | CZH109-1 | CZH109-2 | CZH109-3 | CZH109-4 | CZH109-5 |
| Shield Cable Type | CZH119-1 | CZH119-2 | CZH119-3 | CZH119-4 | CZH119-5 |
| Weight(Kg) | 1.1 | 1.2 | 1.3 | ||
| Code | 1141/D | ||||
| General Cable Type | CZH201-1 | CZH201-2 | CZH201-3 | CZH201-4 | CZH201-5 |
| Shield Cable Type | CZH211-1 | CZH211-2 | CZH211-3 | CZH211-4 | CZH211-5 |
| Weight(Kg) | 1.1 | 1.2 | 1.3 | ||
| Code | 1141/2 | ||||
| General Cable Type | CZH202-1 | CZH202-2 | CZH202-3 | CZH202-4 | CZH202-5 |
| Shield Cable Type | CZH212-1 | CZH212-2 | CZH212-3 | CZH212-4 | CZH212-5 |
| Weight(Kg) | 1.1 | 1.2 | 1.3 | ||
| Code | 1141/2/R | ||||
| General Cable Type | CZH209-1 | CZH209-2 | CZH209-3 | CZH209-4 | CZH209-5 |
| Shield Cable Type | CZH219-1 | CZH219-2 | CZH219-3 | CZH219-4 | CZH219-5 |
| Weight(Kg) | 1.1 | 1.2 | 1.3 | ||
