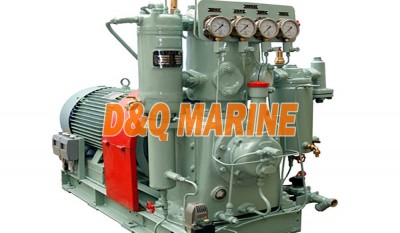

HC-64A Marine Air Compressor:
HC-64A Marine Air Compressor
1.Main Function
HC-64A air compressor is mainly used in large and medium-sized ship and stationary diesel engine starting, also can be used as other industrial departments and the origin of compressed air pressure test
2.Institutional characteristics
HC-64A air compressor is vertical, water cooling, the secondary compression.
Cooling, pressure equalization, pump pressure can be adjusted.
Equipped with automatic control system according to the requirement of the customers.
Automatic control functions: automatic start, automatic stop, automatic unloading, low voltage alarm, oil discharge ultra-high alarm, low pressure alarm
Main Technical Parameter
| Compressor type | HC-64A | ||
| Type | Vertical,Water-Cooled,Two-stage Compression | ||
| Quantity of Air Supply (m3/h) | 54 | 65 | 72 |
| Pressure Rating (MPa) | 3 | ||
| Stalk Power (kw) | 12.5 | 15.2 | 16.5 |
| Rotation Rating (r/min) | 730 | 870 | 960 |
| Quantity of Cooling Water (m3/h) | 1.0-1.4 | ||
| Lubricating System | Forced Lubrication by Gear Pump | ||
| Lubricate Trademark | L-DAB-100（GB12691） | ||
| Type of Unloader | Manual,Total closure suction type or Magnetic Unloader Valve | ||
| Method of Driving | Direct Coupling | ||
| Motor | |||
| Model | Y200L-8-H | Y225S-8-H | Y200L1-6-H |
| Power (kw) | 15 | 18.5 | 18.5 |
| Rotation (r/min) | 730 | 870 | 960 |
| Gradeprotection | IP44 | ||
| Ins Class | B | ||
| Voltage (V) | 380 | 440 | 380 |
| Frequency ( HZ) | 50 | 60 | 50 |
| Shape size (mm) | 1424×890×1190 | ||
| Weight (kg) | 700 | ||
