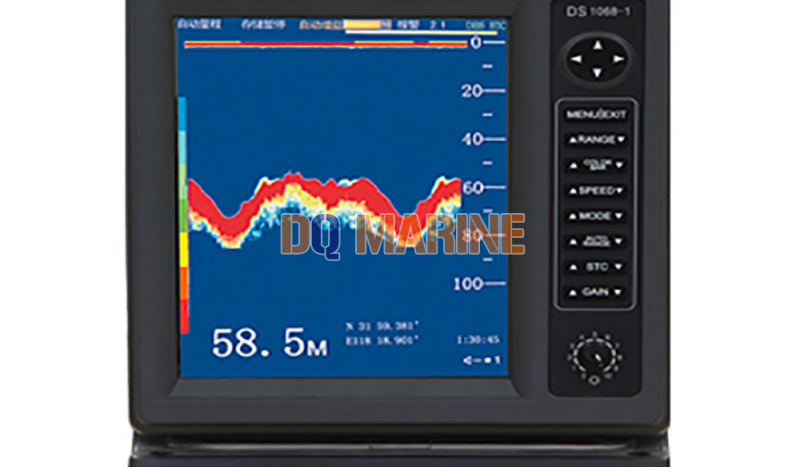

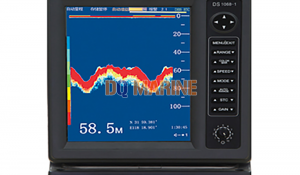

DS1068-1 Navigational Echo Sounder

DS1068-1 Navigational Echo Sounder

DS1068-1 Navigational Echo Sounder Introduction

1. Confirm to IMO & MSC.74 (69) Add4 A.244 (VII), has CCS certificate and CE certificate.

2. Low-cost, No-paper, Non-pollution, High-precision, High-reliability, do not like echo sounder that use belts and record pen.

3. High Contrast ratio 10.4-inch color LED with viewing angles and brightness adjustment.

4. Auto range: Automatically select the range based on water.

5. Auto gain: automatically change based on water.

6. Shallow water alarm, over low voltage/over voltage alarm. ALL of them can make sure your safety navigation.

7. GPS data input, storage function, multi-replay mode make the real-time display come true.

8. The function of linking: printer can be connected to computer via RS-232 interface for print and data exchange.

DS1068-1 Product Technical Parameter

Display: 10.4-inch TFT color LCD （640 x 480）

Basic Range: 0-800m

Auto Range: Adjust Range Automatically

Auto Gain: Suit for the Water Condition

Alarm Depth: 0-20m

Brightness: Adjustable Brightness

Picture Speed: 8-level Adjustable Picture Speed

History Memory: 42 Days

DBS Mode: Echo presentation with the depth below sea surface

Frequency: 200 KHz

Trans Power:500W （RMS）

Power Supply: DC24V （±20%） AC220V（±10%）

Date Output: NMEA0183
