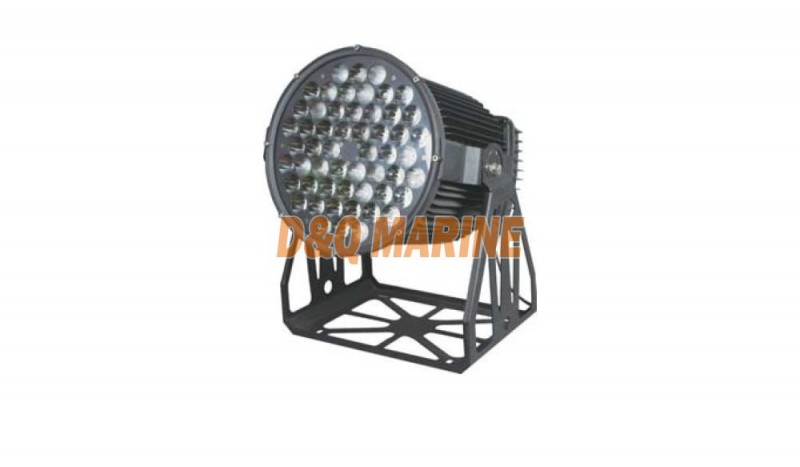

TZ6LED-360 LED Search Light
The scope of application
This light can be used in all kinds of ships, bridge, airports, Large buildings which work environment temperature -40℃～45℃.
Products feature
1. Lamp shell and heat sink are made of good quality stainless steel material by molding.
2. Adopt high photosynthetic efficiency of LED light source, with high brightness and good heat resistant performance, light failure is small, stable quality performance etc.
3. Unique design of the fin type radiator body in harmony with the electrical box, and effectively conduct heat diffusion, high cooling efficiency, thereby reducing the lamp body temperature, ensure the working life of the light source and power supply.
4.Ultra narrow beam Angle (7.5 degrees) provide long distance light projection effect, high color rendering performance, more true to physical color rendering. A variety of color optional, which can meet different environmental needs.
5.Cable outside diameter is Φ4～Φ8 mm.
Adopt standard
1. Conform to international standard of IEC60598-1-2008.
2. Conform to Rules for the classification of sea-going steel ships.
Installation
TZ6LED-360 LED Search Light Specification
| Type | TZ6LED-360 | ||
| Voltage(V)/Frequency | 90-305V/AC/50-60HZ | ||
| LED Power | 360W | ||
| LED Luminous Efficiency | 120-130lm/W | ||
| LED Initial Flux | 26400 | ||
| Lamp's Efficiency | 〉85% | ||
| Illuminance Uniformity | 〉0.8 | ||
| Color Temperature | 4000K-7000K | ||
| Color Rendering Index | 70 | ||
| Light distribution | Symmetric/Circular Spot of light | ||
| Light Design | LED+Lens | ||
| LED Junction Temperature | ≤60 C | ||
| Working Life(Hrs) | 〉50000 | ||
| Protection Class | IP65 | ||
| Weight(Kg) | 30.5 | ||
