TD Series Pipeline Circulation Pump:
China TD Series Pipeline Circulation Pump:
TD type single stage pipe centrifugal pump with standard motor and mechanical seal.The structure of this product is less susceptible to impurities in the pumped liquid than similar products.The product is designed to be removable and removable in a top pull-out form, which allows maintenance of the pump without affecting the piping system.All pumps use innovative mechanical seal, mechanical seal replacement without removing the motor.

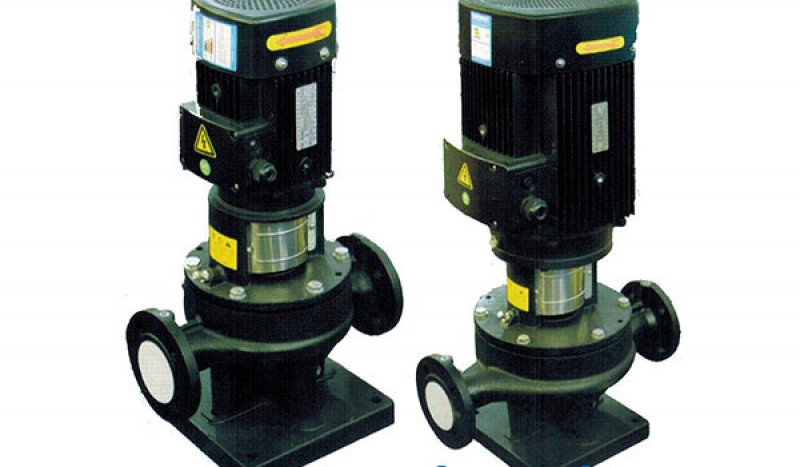

TD Series Pipeline Circulation Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| TD32-18/2 | 8 | 18 | 2900 | 1.1 |
| TD32-21/2 | 12.5 | 21 | 2900 | 1.5 |
| TD32-25/2 | 12.5 | 25 | 2900 | 2.2 |
| TD32-32/2 | 12.5 | 32 | 2900 | 3 |
| TD32-38/2 | 12.5 | 38 | 2900 | 4 |
| TD32-50/2 | 12.5 | 50 | 2900 | 5.5 |
| TD40-16/2 | 12.5 | 16 | 2900 | 1.1 |
| TD40-20/2 | 20 | 20 | 2900 | 1.5 |
| TD40-18/2 | 20 | 18 | 2900 | 2.2 |
| TD40-25/2 | 25 | 25 | 2900 | 3 |
| TD40-30/2 | 25 | 30 | 2900 | 4 |
| TD40-36/2 | 25 | 36 | 2900 | 5.5 |
| TD40-48/2 | 12.5 | 48 | 2900 | 4 |
| TD50-32/2 | 12.5 | 32 | 2900 | 7.5 |
| TD50-38/2 | 12.5 | 38 | 2900 | 3 |
| TD50-48/2 | 16 | 48 | 2900 | 4 |
| TD50-12/2 | 20 | 32 | 2900 | 1.1 |
| TD50-15/2 | 25 | 38 | 2900 | 1.5 |
| TD50-18/2 | 25 | 48 | 2900 | 2.2 |
| TD50-24/2 | 30 | 12 | 2900 | 3 |
| TD50-28/2 | 30 | 15 | 2900 | 4 |
| Also have bigger pumps, pls contact us for more information. | ||||
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
