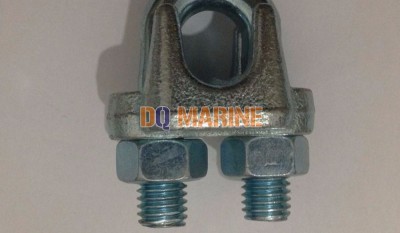

Galvanized Malleable Wire Rope Clips Type A
Description
This product adopts Chinese standard, the body material is malleable iron, U shape bolt material is Q235 steel, Surface can be electro galvanized with yellow zinc or white zinc.
Product Details
Galvanized Malleable Wire Rope Clips Type A sizes table
| Size(mm) | Dimensions(mm) | Weight 100 pcs (kg) | ||||||
| A | B | C | D | E | F | G | ||
| 6 | 22.5 | 14 | 17 | 5 | 12 | 14 | 24.8 | 2.1 |
| 8 | 28 | 17 | 21 | 6 | 15 | 16 | 30.66 | 3.7 |
| 10 | 38 | 21 | 28 | 8 | 19 | 20 | 37.95 | 8.5 |
| 12 | 45 | 27 | 34 | 10 | 24 | 25 | 47.55 | 16 |
| 15 | 52 | 32 | 40 | 12 | 29 | 30 | 57.15 | 25 |
| 20 | 62 | 38 | 46.5 | 14 | 36 | 36 | 71.73 | 43 |
| 22 | 69 | 43 | 51.5 | 16 | 40 | 39 | 78.73 | 60 |
| 25 | 76 | 50 | 56 | 18 | 43 | 44 | 90.4 | 82 |
| 28 | 85 | 57 | 62 | 20 | 48 | 48 | 96.9 | 112 |
| 32 | 93 | 61 | 67 | 22 | 55 | 51 | 110.4 | 150 |
| 40 | 111 | 73 | 81 | 24 | 64 | 62 | 122.5 | 254 |
| 45 | 123 | 86 | 88 | 27 | 72 | 70 | 139.5 | 343 |
| 50 | 135 | 95 | 95 | 30 | 80 | 88 | 156 | 456 |
