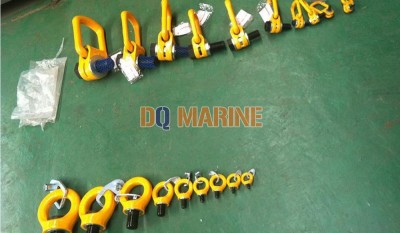

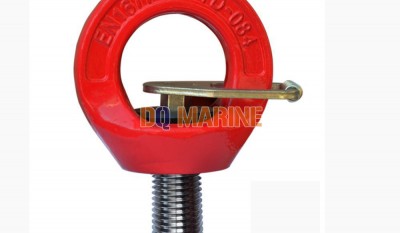

G80 Eye Type Rotating Rings
Introduction
G80 eye type rotating rings adopt the SAE8620H special alloy steel forging and high Strength Quenched and Tempered after treatment, according to the standard of N1677-4.
Any direction safety factor is 4 times.
The rated load than the traditional DIN580 ring screw is more than 5 times higher.
The locking bolt, the ring body can rotate 360 degrees.
In the case of multi limb lifting sling, ring body parts can be automatically adjusted with the direction of rotation or tensile stress angle.
Specification and Details
G80 eye type rotating rings sizes table
| Item No. | WLL (T) | Thread M | Dimensions (mm) | Weight (Kg) | |||||||
| A | B | C | D | E | F | S | W | ||||
| YD-084-08 | 0.3 | 8 | 34 | 25 | 8.5 | 11 | 12 | 28 | 6 | 47 | 0.2 |
| YD-084-10 | 0.4 | 10 | 34 | 25 | 8.5 | 11 | 15 | 28 | 6 | 47 | 0.2 |
| YD-084-12 | 0.75 | 12 | 42 | 30 | 10 | 13 | 18 | 34 | 8 | 56 | 0.3 |
| YD-084-14 | 0.75 | 14 | 42 | 30 | 10 | 13 | 18 | 34 | 8 | 56 | 0.3 |
| YD-084-16 | 1.5 | 16 | 49 | 35 | 14 | 15 | 24 | 40 | 10 | 65 | 0.4 |
| YD-084-18 | 1.5 | 18 | 49 | 35 | 14 | 15 | 24 | 40 | 10 | 65 | 0.4 |
| YD-084-20 | 2.3 | 20 | 57 | 40 | 16 | 17 | 30 | 50 | 12 | 75 | 0.6 |
| YD-084-22 | 2.3 | 22 | 57 | 40 | 16 | 17 | 30 | 50 | 12 | 75 | 0.6 |
| YD-084-24 | 3.2 | 24 | 70 | 48 | 19 | 21 | 36 | 62 | 14 | 90 | 1 |
| YD-084-27 | 3.2 | 27 | 70 | 48 | 19 | 21 | 36 | 62 | 14 | 90 | 1 |
| YD-084-30 | 4.5 | 30 | 86 | 60 | 24 | 26 | 45 | 75 | 17 | 112 | 1.8 |
| YD-084-33 | 4.5 | 33 | 86 | 60 | 24 | 26 | 45 | 75 | 17 | 112 | 1.9 |
| YD-084-36 | 7 | 36 | 103 | 72 | 29 | 32 | 54 | 90 | 22 | 135 | 3 |
| YD-084-42 | 9 | 42 | 120 | 82 | 34 | 38 | 63 | 105 | 24 | 158 | 4.7 |
| YD-084-48 | 12 | 48 | 137 | 94 | 38 | 43 | 72 | 120 | 27 | 180 | 7.5 |
