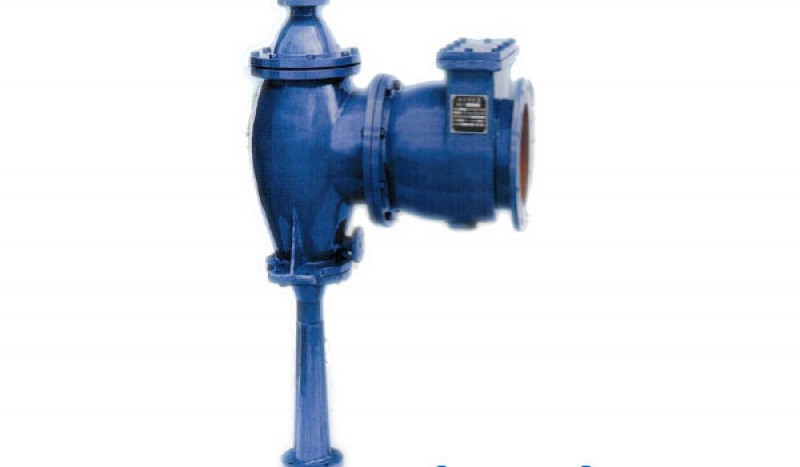

W Series Hydroejector:
China W Series Hydroejector:
The hydraulic jet pump is a kind of mechanical device with three kinds of effective energy, such as vacuum pumping, condensation and drainage.It is the use of a certain pressure of water flow through the symmetrical distribution of a certain inclination of the nozzle, polymerization in a focus.Around because of the jet flow rate is very high, so the formation of negative pressure to make indoor generation vacuum, also due to secondary steam and direct contact with the jet flow, the vast majority of steam condensed water, is not a small amount of condensed steam and non condensable gas as well as high-speed jet flow rub against each other, mixing and extruding, pressure pipe excluded, through expanding is indoor form higher vacuum.
Main Technical Data
| Model |
Evaporation capacity L/h |
Vacuum degree MPa |
Head m |
Capacity m³/h |
| W-100L | 100 | 0.097 | 45 | 18 |
| W-200L | 200 | 0.097 | 45 | 18 |
| W-300L | 300 | 0.097 | 45 | 18 |
| W-400L | 400 | 0.097 | 45 | 18 |
| W-500L | 500 | 0.097 | 45 | 32 |
| W-600L | 600 | 0.097 | 45 | 32 |
| W-700L | 700 | 0.097 | 45 | 32 |
| W-800L | 800 | 0.097 | 50 | 32 |
| W-900L | 900 | 0.097 | 50 | 32 |
| W-1000L | 1000 | 0.097 | 50 | 32 |
| W-1200L | 1200 | 0.097 | 50 | 32 |
| W-1500L | 1500 | 0.097 | 50 | 108 |
| W-1800L | 1800 | 0.097 | 50 | 108 |
| W-2000L | 2000 | 0.097 | 50 | 108 |
| W-3000L | 3000 | 0.097 | 50 | 108 |
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
