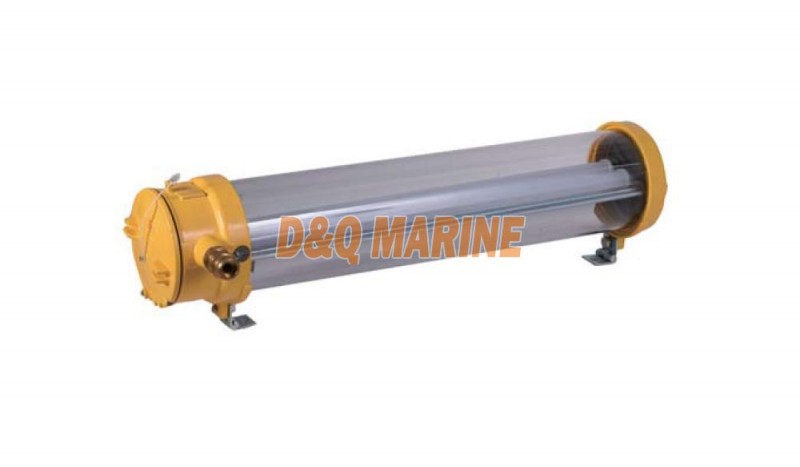

CFY20LED LED Explosion Proof Light
The scope of application
Applied to illumination for ship, oil exploit platform, chemical and explosive gas place zone 1 ,zone 2.flammable gases, vapors levelⅡA,ⅡB,ⅡC level, Temperature class T1～T6 dangerous places.
Products feature
1. The shell adopts high quality cast brass, the lamp body adopts seal structure with high waterproof and corrosion resistance.
2. Mounting type: hanging.
3. LED light source, long working life, high light intensity, low energy consumption
4. The cable outside diameter is Φ11～Φ12mm.
Adopt standard
Conform to 3836.1; GB12045; EN50014; EN50018; EN60079; GB17743; GB19510.1; GB19510.14 standard.
Installation
CFY20LED LED Explosion Proof Light Specification
| Type | CFY20LED | ||
| Explosion Proof Mark | Ex d‖CT6Gb | ||
| Voltage(V) | 220V/50HZ,220V/60HZ | ||
| Light Source | LED | ||
| Power(W) | 2*12 | ||
| Protection Class | IP56 | ||
| Weight( Kg) | 12.5 | ||
