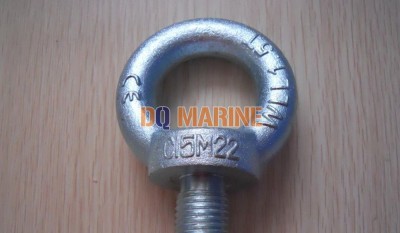

Eye Screw DIN 580
Category:
Blots and nuts
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Eye Screw DIN 580:
Description

Eye screw DIN 580 adopts German standard, the material is Q235 steel, this production is made by die forging technology, and the surface can be treated of electro galvanizing, zinc plating, hot galvanizing.

Details

Eye Screw DIN 580 sizes table

Size (mm) WLL (t) Weight 100pcs (Ibs) Dimensions (mm)
d1 d2 d3 b e h k
M6 0.14 11 17 28 16 13 6 17 6
M8 0.14 13 20 36 20 15 6 18 8
M10 0.23 24 25 45 25 18 8 22 10
M12 0.34 40 30 54 30 22 10 26 12
M14 0.49 63 35 63 35 28 12 30 14
M16 0.7 62 35 63 35 28 12 30 14
M20 1.2 99 40 72 40 30 12 35 16
M22 1.5 148 45 81 45 35 14 40 18
M24 1.8 192 50 90 50 38 16 45 20
M27 2.5 194 50 90 50 38 18 45 20
M30 3.6 366 65 108 60 45 18 55 24
M33 4.3 380 65 108 60 45 22 55 24
M36 5.1 585 75 126 70 55 22 65 28
M39 6.1 618 75 126 70 55 26 65 28
M42 7 889 85 144 80 65 30 75 32
M45 8 938 85 144 80 65 30 75 32
M48 8.6 1408 100 166 90 70 35 85 38
M52 9.9 1456 100 166 90 70 35 85 38
M56 11.5 1942 110 184 100 80 38 95 42
M64 16 2736 120 206 110 90 42 100 48
