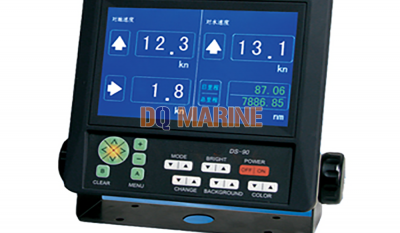

DS90 Doppler Speed Log
DS90 Doppler Speed Log Introduction
1. Confirm to IMO MSC.334 (90). Has CCS certificate.
2. Pair-beam system effectively reduces error caused by pitching. The transducer assembly symmetrically emits tow sonic beams, one fore and the other aft. By averaging the Doppler shift in both directions accurate speed data is available under rough sea conditions.
3. Speed and distance information on the bright 7-inch TFT display.
4. Speed output to RADAR, ECDIS, AIS, VDR, GMDSS equipment, etc.
5. Fully meets SOLAS carriage requirement for ships over 300GT.
DS90 Product Technical Parameter
| Measuring System | Paired-beam Doppler Log 1MHz |
| Display Unit | 7-inch Color LED 320x240 Pixels |
| Speed Range | Fonward: 0~40kt, 0.1kt/step; Astern: 0~10kt, 01kt/step |
| Distance Run | 0~999.99900 nm |
| Speed Accuracy | 2 kts or 2%, Whichever is greater |
| Water Depth | Deeper than 3m |
| Power Supply | AC 110V/220V ± 10% |
