AMC729 Sonic Aerograph

AMC729 Sonic Aerograph

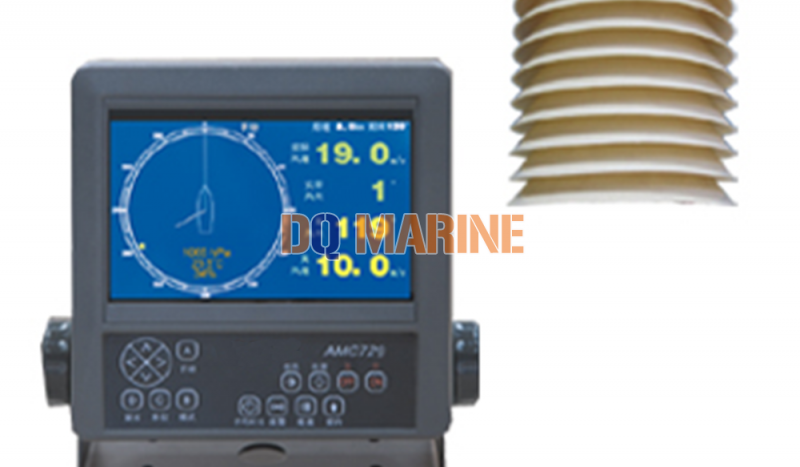

AMC729 Sonic Aerograph Introduction

1. AMC729 is the derivative instrument from ultrasonic anemometer AMC728.

2. Add temperature, humidity and pressure display except AMC728 functions.

3. Without mechanic maintenance for no moving parts.

4. 7 inches color LCD will display plenty of information.

5. NMEA 0183 interface.

Product Technical Parameter

Display: 7 inch TFT color LCD (320*240)

Brightness: Adjustable brightness and black color.

Speed Range: 0~40m/s

Speed Accuracy: ± 0.1m/s when speed ＜5m/s, ± 2% when speed ＞5m/s.

Direction Range: 0~359°

Temperature Range: -40℃~+90℃

Pressure Range: 0~9999hPa

NMEA Input (two-line): Option from GPS, Gyro, and Speed log.

NMEA Output (two-line): Speed and direction data.
