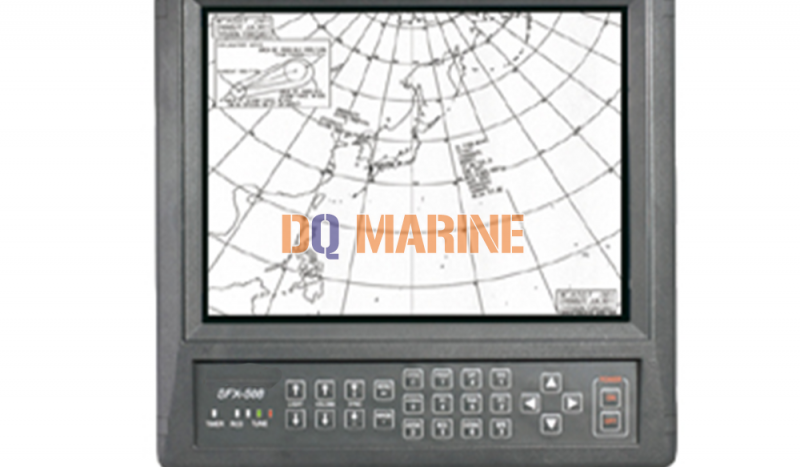

SFX508 LCD Weather Facsimile

SFX508 LCD Weather Facsimile

SFX508 LCD Weather Facsimile Introduction

1. Strictly complied with Nation Standard of the People’s Republic of China GB/T 78913-2002/ISO 9876: 1997, IDT standard. Consultative of international radio, CCIR recommendation 343-1(1986); world meteorological organization WMO No.386, part -7：1986 Meteorology radio-facsimile chart transmission.

2. 15 inches LCD screen, guarantee the accurate meteorology facsimile chart receiving under challengeable weather conditions.

3. 900 available channels, including 330 pre-programed channels and 570 programmable channels for customer use.

4. Non-paper recording, simultaneously store the least 120 pictures at most, easy and efficient to check and make use of required data anytime.

5. Zoom in/out and rotation functions allow every detail in the chart even more accurate.

6. Automatically receive data using 32 internal timers.

SFX508 Product Technical Parameter

Display: 15-inch TFT color LCD.

Frequency Range: MF/HF 2.0000~24.99999MHz.

Mode: F3C

Number of Channels: 900 Channels.

I.O.C: 576/288

Recording Speed: 60, 90, 120 scan per minute

Power Source: DC 24V ± 20%

Dimension: 382x404x110mm.

Weight: 7Kg
