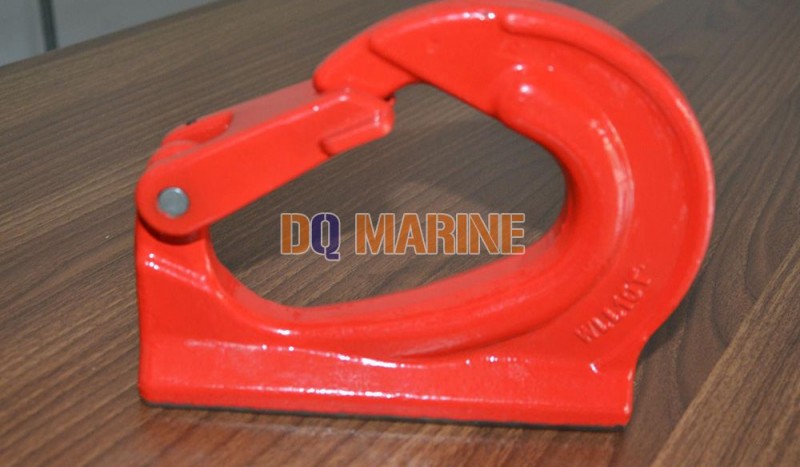

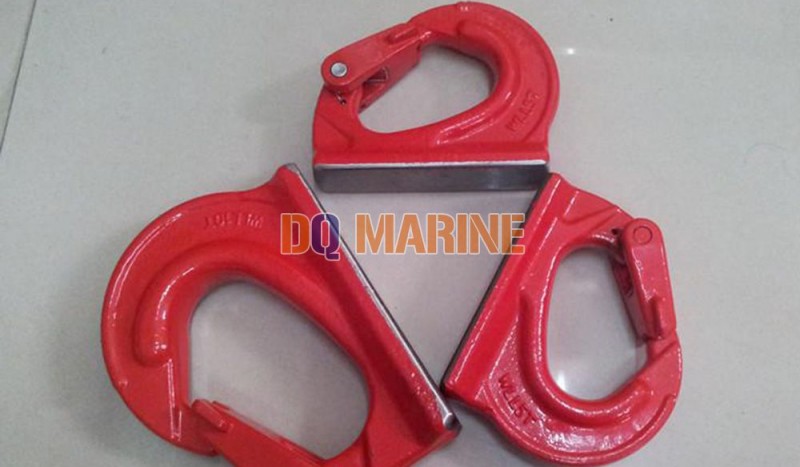

G80 Weld-On Hook
Introduction
Forged super alloy steel-Quenched Tempered.
Individually proof test at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test magnaflux crack detection.
With forged latch.
Product Details
G80 Weld-On Hook sizes table
| Item No. | Size | WLL (T) | Break Load (T) | Dimensions (mm) | Weight (Kg) | |||
| B | C | E | L | |||||
| YD-072-02 | 2T | 2 | 10 | 92 | 67 | 30 | 114 | 0.83 |
| YD-072-03 | 3T | 3 | 15 | 106 | 73.5 | 33.2 | 129 | 1.2 |
| YD-072-05 | 5T | 5 | 25 | 133 | 94 | 39 | 171 | 2.46 |
| YD-072-08 | 8T | 8 | 40 | 136.5 | 94 | 35 | 177 | 3.26 |
| YD-072-10 | 10T | 10 | 50 | 169.5 | 134.5 | 50.54 | 223 | 5.17 |
| YD-072-15 | 15T | 15 | 75 | 184 | 155 | 54 | 255 | 8 |
