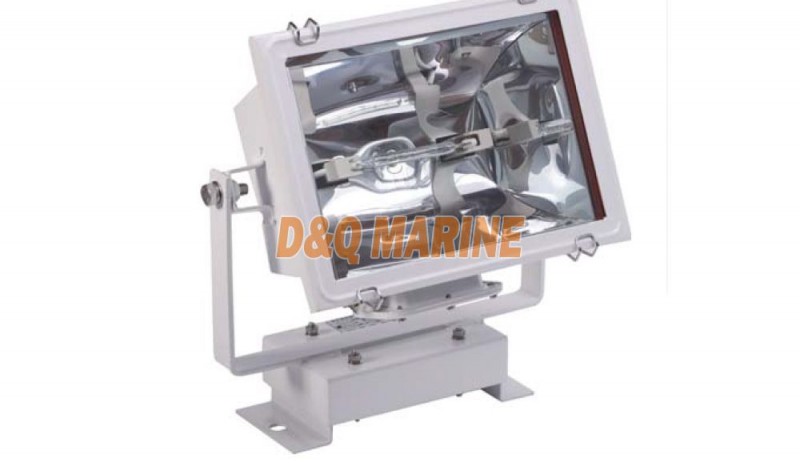

TG17 Spot Light
The scope of application
This product is designed to use for illumination in desk of ship, storage yard, wharf, advertisement etc.
Products feature
1. Easy to replace the bulbs.
2. The body of light is made of stainless steel or steel two type of material with excellent corrosion resistance.
3. There are shock resistance device in the bottom.
4. The body of light can be rotated 180 degree in horizontal and adjusted 45 degree up and down.
5. High-pure aluminum reflector with perfect reflective effect.
6. The shade adopt toughened glass.
7. The cable outside diameter is Φ10～Φ12mm.
Adopt standard and product certification
1. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.
2. Conform to GB7000.7 of SAFETY REQUIREMENTS FOR FLOOD LIGHT.
3. Conform to GD01 of GUIDELINES FOR TYPE APPROVAL TEST OF ELECTRIC AND ELECTRONIC PRODUCTS.
Installation
TG17 Spot Light Specification
| Type | TG17 | TG17S | ||
| Power(W) | 500W | 1000W | 500W | 1000W |
| L1(mm) | 325 | 440 | 325 | 440 |
| L2(mm) | 330 | 415 | 330 | 415 |
| Voltage(V) | 220V/50HZ,220V/60HZ,110V/60HZ | |||
| Llluminant | Tungsten Halogen Lamp | |||
| Luminous Flux(Lm) | 8500 | 22000 | 8500 | 22000 |
| Lamp Holder | R7S | |||
| Protection Class | IP56 | |||
| Material | Stainless Steel | Steel | ||
| Weight( Kg) | 5.4 | 8.8 | 5.1 | 8.3 |
