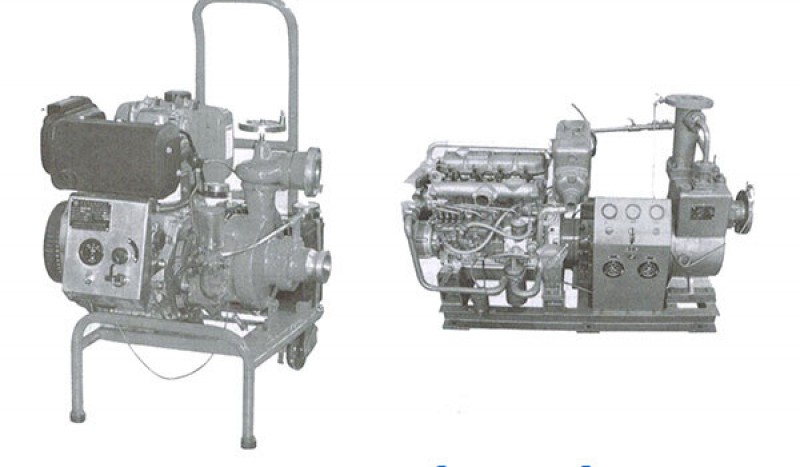

CWY Series emergency fire pump
China CWY Series emergency fire pump:
CWY series Marine diesel engine emergency fire pump is developed by our company new national patent products, which is based on the China classification society "steel sea vessel classification and construction rules - 1996 and the international safety of life at sea treaty specification design, with light weight, small volume, simple structure, - 5 ℃ start quickly, fast water, fuel tank capacity big, corrosion resistance, mobile and flexible, reliable use, convenient maintenance, etc.Mainly used for ship emergency fire fighting and other drainage.
CWY Series emergency fire pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Suction head m |
Engine power KW |
| 65CWY-30 | 25 | 30 | 6.0-7.0 | 4 |
| 65CWY-40 | 30 | 40 | 4.0-5.0 | 6 |
| 80CWY-55 | 60 | 55 | 4.0-5.0 | 20 |
| 80CWY-70 | 60 | 70 | 4.0-5.0 | 22 |
| 100CWY-65 | 100 | 65 | 4.0-5.0 | 30 |
| 100CWY-70 | 90 | 70 | 4.0-5.0 | 31 |
| 100CWY-75 | 70 | 75 | 4.0-5.0 | 30 |
