Concentration and Dispersed Air Diffuser
China Concentration and Dispersed Air Diffuser:
The product realizes the perfect combination of directional wind and powder flow wind.In winter,the wind guide plate into the ceiling,the wind vertical send,ball can rotate at any angle,to adjust the air flow direction of air,more humanized design;the summer wind guiding plate into the ceiling ,sending wind along the ceiling form attached airflow,the ball body can rotate at any angle,to adjust the direction of the air flow air,feels more cool.
Drawing:
Specification:
| specification | L | W | B | D out letD | Ceiling open hole | Flow-rate m³/h |
| CMS-C | 250 | 250 | 160 | 125 | 129 | 0-60 |
| CMS-D | 250 | 250 | 160 | 145 | 145 | 0-90 |
| CMS-E | 250 | 250 | 160 | 155 | 158 | 0-220 |
| CMS-F | 350 | 350 | 160 | 230 | 235 | 0-350 |

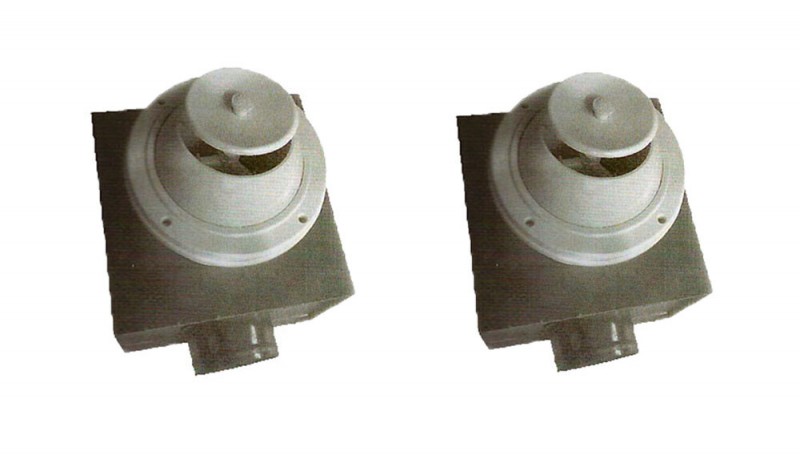

Picture:
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
