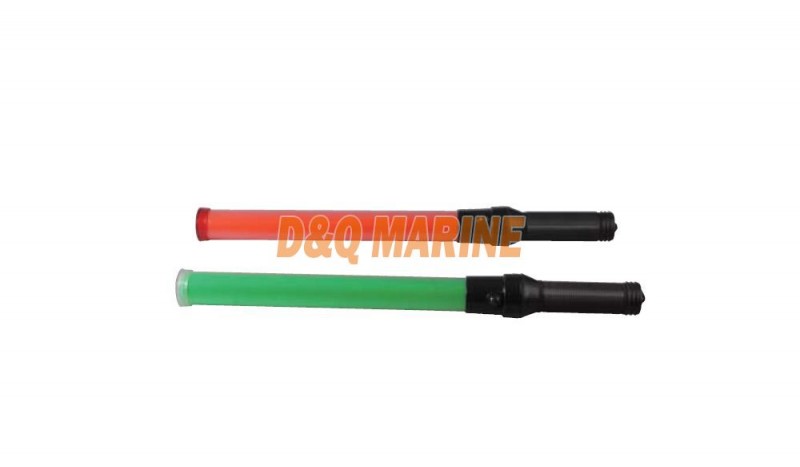

ZJD11 Commanding Light Rod
The scope of application and Products feature
1. ZJD11 is used by crew who guide the helicopter to rising and landing at nighttime or low visibility.
2. The light is hand type.
3. The light adopt PC material with the feature of light weight and damage resistance after dropping.
4. The light source is LED with the feature of long lifetime, high light intensity and low energy consumption
Adopt standard
1. Conform to GJB534B-2009 STANDARD of GENERAL REQUIREMENTS FOR HELICOPTER FACILITIES OF NON-AVIATION SHIPS.
2. Conform to GB/T3027-2012 STANDARD of MARINE ILLUMINATE LIGHTS COMMONLY USED TECHNOLOGY CONDITIONS.
3. Conform to CAP437-2013 STANDARD of SAFETY REGULATIONS FOR MARINE HELICOPTER DECK PLATFORM.
Installation
ZJD11 Commanding Light Rod Specification
| Name | Commanding Light Rod | |
| Type | ZDJ11 | |
| Visibility | ≥200m | |
| Level arc | Tubular Illumination | |
| Voltage | DC2.4V | DC3.6 |
| Color | Red | Green |
| Light Source | LED | |
| Power | 0.1W | |
| Protection Class | IP56 | |
| Weight( Kg) | 0.6 | |
