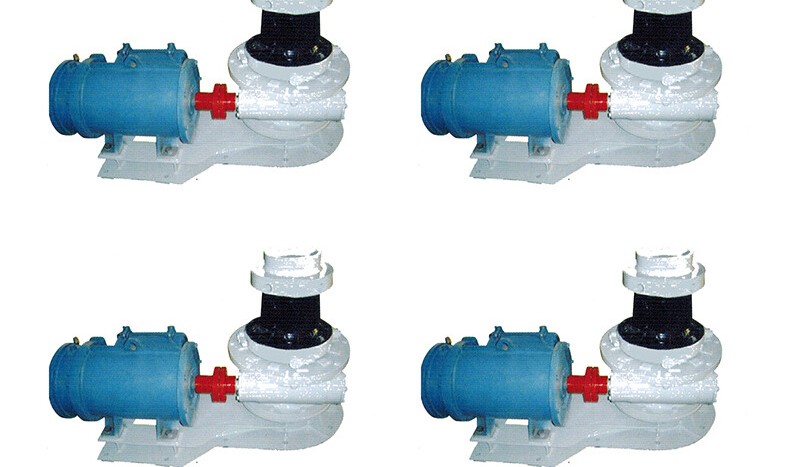

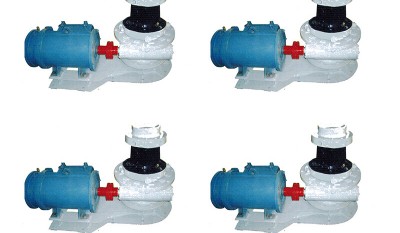

160KN Electric Capstan
20-160KN Electric Capstan
The warping capstans are used in inland river boats and coustal ships for lashing rope,which can be operated by manpower,motor or hydraulic system.
Drawing
Technical specifications
|
Specification and names |
Diagram NO. |
Mooring Load (KN) |
Nominal Speed (m/min) |
Steel Cable (mm) |
Remarks |
| 20KN Electric Capstan | 223WTJ-7-00 | 20 | >12 | φ20.5 | Cycloid |
| 30KN Electric Capstan | 223WTJ-8-00 | 30 | >12 | φ20.5 | Cycloid |
| 50KN Electric Capstan | 223WTJ-9-00 | 50 | >12 | φ26 | Cycloid |
| 160KN Electric Capstan | 223SC504-00 | 160 | 12 | φ37.5 |
