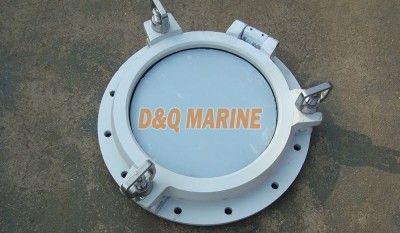

C RB Type Side Scuttles For Ship
C RB Type Side Scuttles For Ship:
| SIZE OF CLEAR D | D1 | D2 | D4 | D5 | h | t | α |
| 2 0 0 | 245 | 2 0 4 | 350 | 310 | 1 5 5 | 6 | 45° |
| 2 5 0 | 295 | 2 5 4 | 400 | 364 | 1 8 2 | 6 | 42° |
| 3 0 0 | 350 | 3 0 4 | 450 | 414 | 2 0 7 | 8 | 3 1° |
| 3 5 0 | 400 | 3 5 4 | 500 | 464 | 2 3 2 | 8 | 3 2° |
| 4 0 0 | 450 | 4 0 4 | 550 | 514 | 2 5 7 | 10 | 3 1° |
| 450 | 500 | 454 | 600 | 564 | 282 | 10 | 3 1° |
| OUT OF CLIP | BOLT | SIZE OF OPENING | ||
| DEADLIGHT | FRAME | WHORL | QUT | |
| _ | 3 | M12 | 8 | 2 5 3 |
| _ | 3 | M16 | 8 | 3 0 8 |
| _ | 3 | M16 | 12 | 3 6 3 |
| _ | 3 | M16 | 12 | 4 1 3 |
| _ | 3 | M18 | 12 | 4 6 3 |
| _ | 4 | M20 | 12 | 513 |
