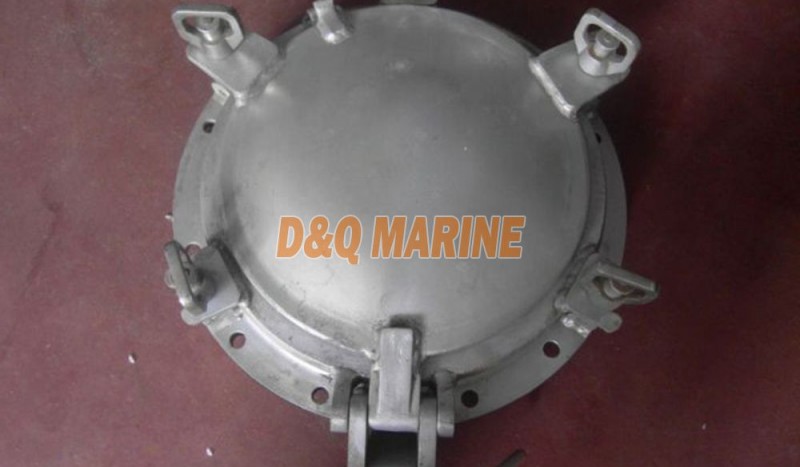

A NB TYPE SIDE SCUTTLES FOR SHIPS
A NB TYPE SIDE SCUTTLES FOR SHIPS:
| TYPE |
SIZE OF CLEAR D |
D2 | D3 | D4 | D5 | h | t | α | |
| A | NB | 2 0 0 | 2 0 4 | 2 5 0 | 3 5 0 | 3 1 0 | 1 5 5 | 1 0 | _ |
| 2 5 0 | 2 5 4 | 3 0 5 | 4 0 0 | 3 6 4 | 1 8 2 | 1 2 | _ | ||
| 3 0 0 | 3 0 4 | 3 6 0 | 4 5 0 | 4 1 4 | 2 0 7 | 1 5 | 3 1° | ||
| 3 5 0 | 3 5 4 | 4 1 0 | 5 0 0 | 4 6 4 | 2 3 2 | 1 5 | 3 1° | ||
| 4 0 0 | 4 0 4 | 4 6 0 | 5 5 0 | 5 1 4 | 2 5 7 | 1 9 | 3 1° | ||
| OUT OF CLIP | BOLT | SIZE OF OPENING | ||
| DEADLIGHT | FRAME | WHORL | QUT | |
| 2 | _ | M 1 6 | 8 | 2 5 3 |
| 2 | _ | M 1 6 | 8 | 3 0 8 |
| 3 | _ | M 1 6 | 1 2 | 3 6 3 |
| 3 | _ | M 1 6 | 1 2 | 4 1 3 |
| 3 | _ | M 1 8 | 1 2 | 4 6 3 |
