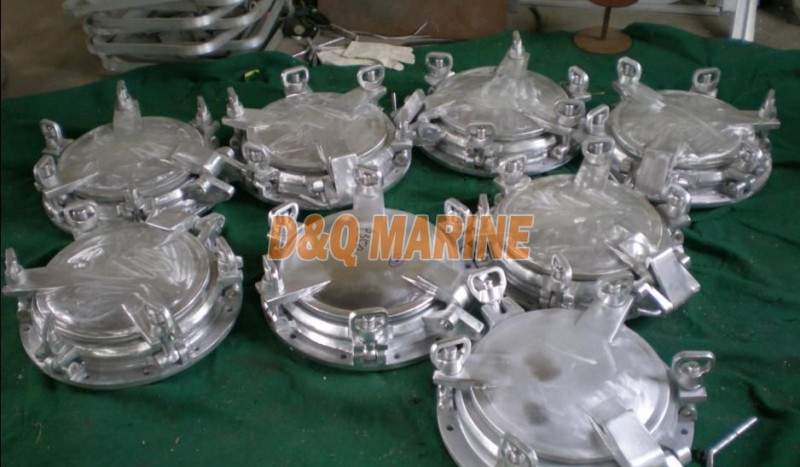

A SW TYPE SIDE SCUTTLES FOR SHIPS
A-SW TYPE SIDE SCUTTLES FOR SHIPS:
| TYPE |
SIZE OF CLEAR D |
D1 | D2 | D3 | h | t | α | |
| A | SW | 2 0 0 | 245 | 2 0 4 | 2 5 0 | 1 5 5 | 1 0 | 45° |
| 2 5 0 | 250 | 2 5 4 | 3 0 5 | 1 8 2 | 1 2 | 42° | ||
| 3 0 0 | 300 | 3 0 4 | 3 6 0 | 2 0 7 | 1 5 | 3 1° | ||
| 3 5 0 | 350 | 3 5 4 | 4 1 0 | 2 3 2 | 1 5 | 3 1° | ||
| 4 0 0 | 400 | 4 0 4 | 4 6 0 | 2 5 7 | 1 9 | 3 1° | ||
| gmax | OUT OF CLIP | SIZE OF OPENING | |
| DEADLIGHT | FRAME | ||
| 50 | 2 | 3 | 2 5 3 |
| 47.5 | 2 | 3 | 3 0 8 |
| 45 | 3 | 3 | 3 6 3 |
| 45 | 3 | 3 | 4 1 3 |
| 45 | 3 | 3 | 4 6 3 |
