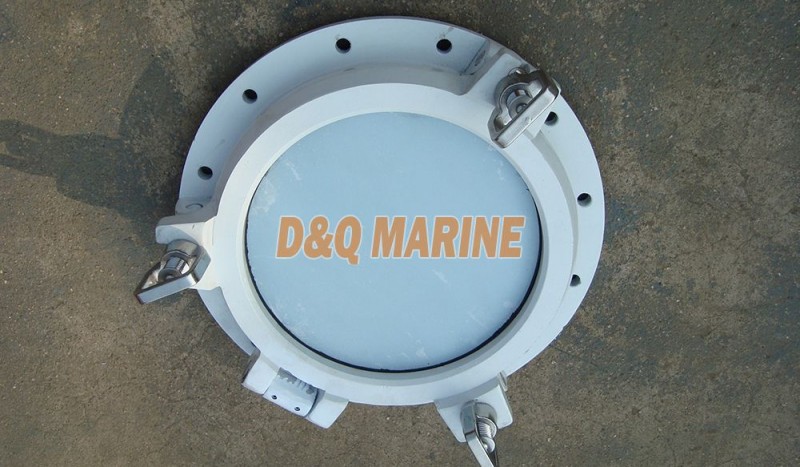

C Type Side Scuttles For Ship
C-LW(RW) Side Scuttles For Ship:
| TYPE |
SIZE OF CLEAR D |
D1 | D3 | h | |
| C |
LW RW |
2 0 0 | 245 | 250 | 1 5 5 |
| 2 5 0 | 295 | 305 | 1 8 2 | ||
| 3 0 0 | 350 | 360 | 2 0 7 | ||
| 3 5 0 | 400 | 410 | 2 3 2 | ||
| 4 0 0 | 450 | 460 | 2 5 7 | ||
| 450 | 500 | 510 | 282 | ||
| t | α | gmax | OUT OF CLIP | SIZE OF OPENING | |
| DEADLIGHT | FRAME | ||||
| 6 | 45° | 50 | _ | 3 | 2 5 3 |
| 6 | 42° | 47.5 | _ | 3 | 3 0 8 |
| 8 | 3 1° | 45 | _ | 3 | 3 6 3 |
| 8 | 3 2° | 45 | _ | 3 | 4 1 3 |
| 10 | 3 1° | 45 | _ | 3 | 4 6 3 |
| 10 | 3 1° | 45 | _ | 4 | 513 |
