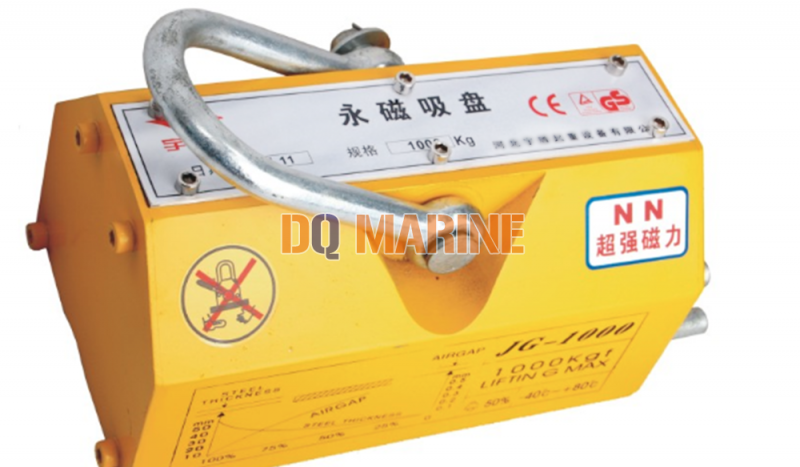

Permanent-Magnetic Chunk
Permanent-Magnetic Chunk Details
The parameter table
| Model | Load(kg) | Size(cm) | Breaking Force(kg) | Net Weight(kg) | Gross Weight(kg) |
| JG-100 | 100 | 25X16X16 | 300 | 3 | 4 |
| JG-400 | 400 | 32X20X17 | 1200 | 10 | 11 |
| JG-600 | 600 | 37X23X21 | 1800 | 20 | 22 |
| JG-1000 | 1000 | 43X28X24 | 3000 | 37 | 40 |
| JG-2000 | 2000 | 52X30X31 | 5000 | 68 | 74 |
| JG-3000 | 3000 | 60X30X31 | 7500 | 87 | 93 |
| JG-4000 | 4000 | 68X30X41 | 10000 | 113 | 121 |
| JG-5000 | 5000 | 73X40X48 | 12500 | 198 | 213 |
