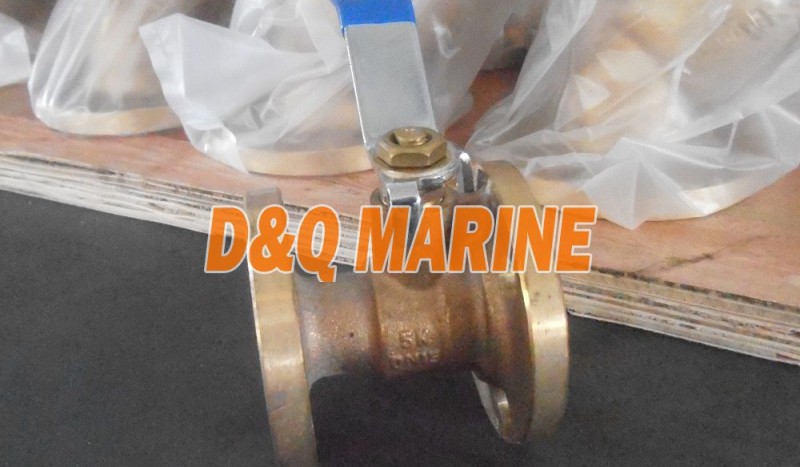

Bronze Flanged Ball Valve
China Bronze Flanged Ball Valve:
Bronze Flanged Ball Valve is mainly used to shut off and turn on the medium in the pipeline, can also be used to adjust and control the fluid. Its open-close part is a ball. Ball valve has the feature: easy operation, simple structure, small fluid resistance, good sealing..etc.
Main Material:
Body: Bronze
Ball: Stainless Steel
Main Data for Joining(mm):
| Size | d | L | D | C | N-h | t |
| 5K15 | 12.5 | 76 | 80 | 60 | 4-12 | 11 |
| 5K20 | 15 | 74 | 85 | 65 | 4-12 | 11.5 |
| 5K25 | 20 | 78 | 95 | 75 | 4-12 | 11.5 |
| 5K32 | 32 | 100 | 115 | 90 | 4-15 | 13.5 |
| 5K40 | 40 | 100 | 120 | 95 | 4-15 | 13.5 |
| 10K15 | 12.5 | 76 | 95 | 70 | 4-15 | 11 |
| 10K20 | 15 | 74 | 100 | 75 | 4-15 | 11.5 |
| 10K25 | 20 | 78 | 125 | 90 | 4-19 | 11.5 |
| 10K32 | 32 | 100 | 135 | 100 | 4-19 | 13.5 |
| 10K40 | 40 | 100 | 140 | 105 | 4-19 | 13.5 |
