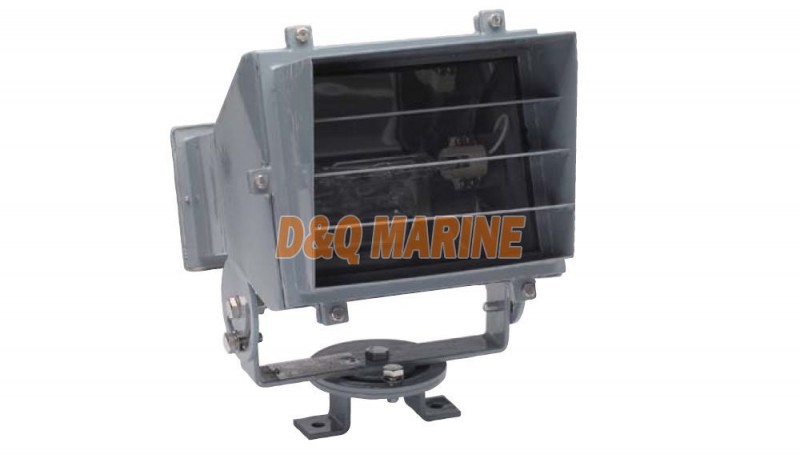

ZJD13 Flood Light For Platform:

The scope of application and Products feature

1. ZJD13 is suitable to fix on the left and right at out of boundary line for the deck at inside of boundary as illumination light.

2. The shell is made of high quality stainless steel.

3. The light body can be rotated in horizontally and vertically to adjust the angle of illumination.

4. Adopt high quality silicone rubber for sealing with good waterproof performance.

5.The lampshade glass is toughened, which can be bear the temperature sudden changes about 250°C and with the feature of transmission of light.

6.The cable outside diameter is Φ9-Φ11 mm.

Adopt standard

1. Conform to GJB534B-2009 STANDARD of GENERAL REQUIREMENTS FOR HELICOPTER FACILITIES OF NON-AVIATION SHIPS.

2. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.

3. Conform to GB/T3027-2012 STANDARD of MARINE ILLUMINATE LIGHTS COMMONLY USED TECHNOLOGY CONDITIONS.

4. Conform to CAP437-2013 STANDARD of SAFETY REGULATIONS FOR MARINE HELICOPTER DECK PLATFORM.

Installation

ZJD13 Flood Light For Platform Specification
