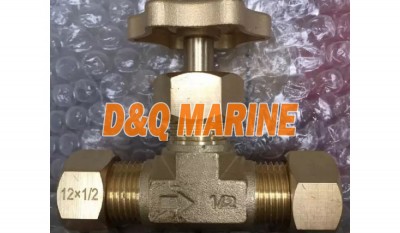

Brass Needle Valve with Ring Joint Nut on Both Ends
China Brass Needle Valve with Ring Joint Nut on Both Ends:
Brass Needle Valve is used to connect the copper tubing, control the flow of liquids or gas requiring close regulating.
Technical Specification:
1. Applicable temperature will be -20℃ to 100℃
2. Max Pressure: 3.43Mpa (35kgf/cm2)
3. Recommended for use at less than 80% of max load pressure at temperature between 80℃ and 100℃.
Main Material:
Body: Brass
Stem: Brass
Main Size:
| IMPA | Nominal Size | OD of Tube | Thread | Length | Height |
| 752101 | 6 x 1/4 | 6 | PF-1/4 | 57 | 37 |
| 752102 | 8 x 3/8 | 8 | PF-3/8 | 68 | 42 |
| 752103 | 10 x 3/8 | 10 | PF-3/8 | 85 | 50 |
| 752104 | 12 x 1/2 | 12 | PF-1/2 | 91 | 50 |
| 752105 | 14 x 1/2 | 14 | PF-1/2 | 93 | 50 |
