16T Electric Hoist Crane

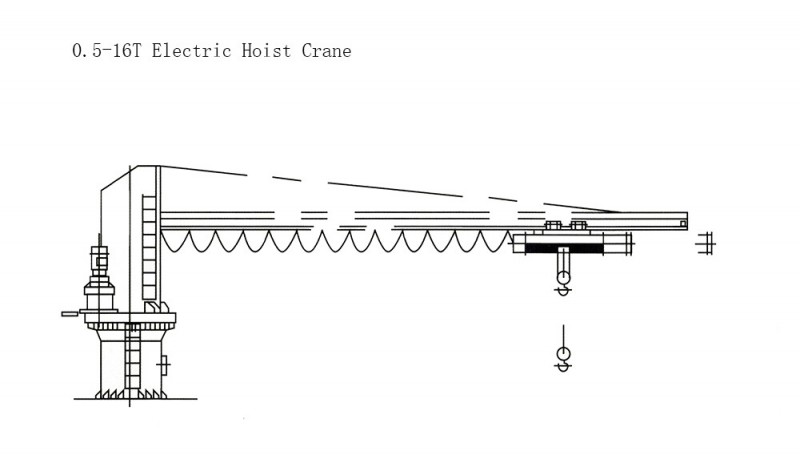

0.5-16T Electric Hoist Crane
A crane is a large deck machinery on board, which is a device for loading and unloading cargo on ships. According to the power source, it is divided into three types: manual, electric and hydraulic.
Technical specifications
|
S.W.L (t) |
Working Radius (m) |
Lifting Height (m) |
Lifting Speed (m/min) |
Running Time (s) |
Rotating Velocity (r/min) |
| 0.5 | 1.5-10 | 6/9/12 | 15 | 20 | 0.8 |
| 1 | 1.6-10 | 6/9/12/18/24 | 15 | 20 | 0.8 |
| 2 | 1.8-10 | 6/9/12/18/24 | 15 | 20 | 0.8 |
| 3 | 1.8-10 | 6/9/12/18/24 | 15 | 20 | 0.5 |
| 5 | 2.0-10 | 6/9/12/18/24 | 15 | 20 | 0.5 |
| 10 | 2.5-15 | 6/9/12/18/24 | 15 | 20 | 0.5 |
| 16 | 2.8-15 | 12/18/24 | 15 | 10 | 0.5 |
