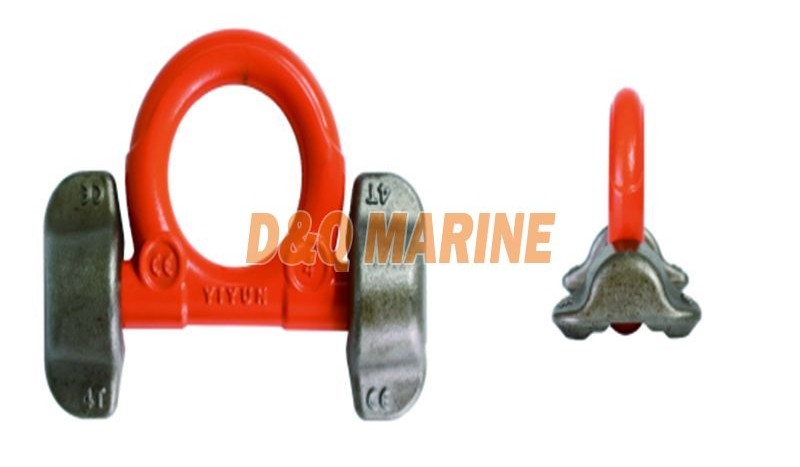

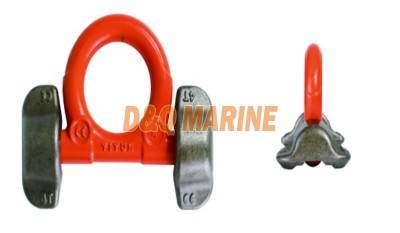

YD092 Welded Lifting Lug
China YD092 Welded Lifting Lug:
YD092 Welded Lifting Lug
Metric Thread:

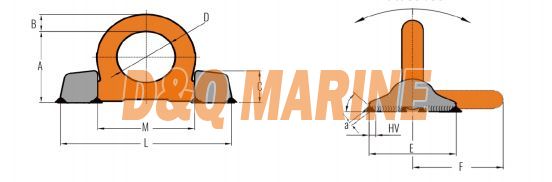

| ITEM NO. | WLL/T | Dimensional Parameters/mm | Kg | |||||||||
| A | B | C | D | E | F | L | M | HV | a | |||
| BLT092-04 | 4 | 66 | 14 | 30 | 48 | 65 | 70 | 135 | 76 | 5 | 3 | 1.1 |
| BLT092-06 | 6.7 | 85 | 20 | 39 | 60 | 89 | 91 | 171 | 98 | 5 | 3 | 1.6 |
| BLT092-10 | 10 | 95 | 21 | 46 | 65 | 100 | 100 | 196 | 106 | 7 | 4 | 2.6 |
| BLT092-16 | 16 | 127 | 30 | 57 | 90 | 130 | 136 | 263 | 149 | 8 | 4 | 5.7 |
| BLT092-30 | 31.5 | 178 | 42 | 78 | 130 | 160 | 160 | 375 | 213 | 15 | 4 | 15.6 |
