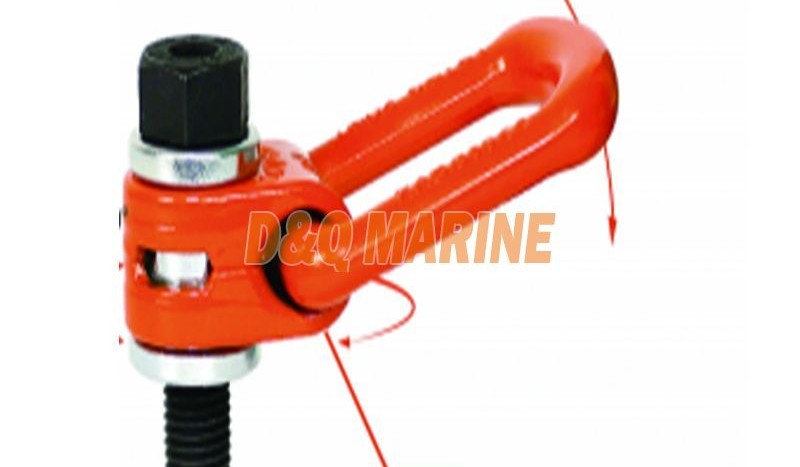

Side Load Lifting Point - Image 1

Side Load Lifting Point

Category: Blots and nuts

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote

We can supply according to your requirement.

Side Load Lifting Point

China Side Load Lifting Point:

Side Load Lifting Point

Metric Thread:

ITEM NO	WLL/T	M	Dimensional Parameters/mm											Locking Torque /Nm		Kg
ITEM NO	WLL/T	M	E	A	B	C	D	F	G	L	N	S	SW	Locking Torque /Nm		Kg
BLTO81-M42S	10	M42x4.5	72	77	85	106	27	226.5	123	93.5	69	22	65	350-800		6.3
BLTO81-M42B	15	M42x4.5	63	95	104	117	36	257.5	158	104.5	98	22	65	350-800		11
BLTO81-M45	15	M45x4.5	63	95	104	117	36	257.5	158	104.5	98	22	65	350-800		11
BLTO81-M48	20	M48x5.0	72	95	104	120	36	257.5	158	101.5	98	27	75	350-800		12
BLTO81-M52	20	M52x5.0	72	95	104	117	36	257.5	158	105	98	27	75	350-900		12
BLTO81-M56	22	M56x5.5	84	95	104	117	36	257.5	158	105	98	27	85	350-900		12.4
BLT081-M64	22.5	M64x6.0	100	114	104	138	36	266	158	92	109	32	95	500-1000		18

UNC Thread:

ITEM NO.	WLL/T	M	TPI	Dimensional Parameters/mm											Locking Torque /Nm		Kg
ITEM NO.	WLL/T	M	TPI	E	A	B	C	D	F	G	L	N	S	SW	Locking Torque /Nm		Kg
BLT081-5/16	0.3	5/16	18	11	34	37	42	14	98.5	57	42.5	31	6	13	10-40		0.5
BLT081-3/8	0.63	3/8	16	16	34	37	43	14	98.5	57	41.5	31	6	16	10-40		0.5
BLT081-1/2	1	1/2	13	21	34	37	45	14	98.5	57	39.5	31	8	18	15-40		0.5
BLT081-5/8	1.5	5/8	11	24	34	37	48	14	98.5	57	36.5	31	10	24	45-130		0.5
BLT081-3/4	2.5	3/4	10	26	50	54	58	16.5	143	82	68.5	45	12	30	45-130		1.3
BLT081-7/8	2.5	7/8	9	30	50	54	61	16.5	143	82	65.5	45	14	36	100-170		1.4
BLTO81-1	4	1	8	36	50	54	61	16.5	143	82	65.5	45	14	36	190-280		1.4
BLT081-1-1/4	5	1-1/4	7	48	60	65	80	22	174	99	72	59.5	17	46	270-600		3.5
BLT081-1-1/2	8	1-1/2	6	62	77	85	104	27	226.5	123	95.5	69	22	55	270-600		6
BLT081-1-3/4	15	1-3/4	5	63	95	104	116	36	257.5	158	105.5	98	22	65	350-800		11
BLT081-2	20	2	4.5	72	95	104	112	36	257.5	158	109.5	98	27	75	350-800		12
